Tube, Fuel Tank Filler: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Tank Filler Tube

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate both of the negative battery cables.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

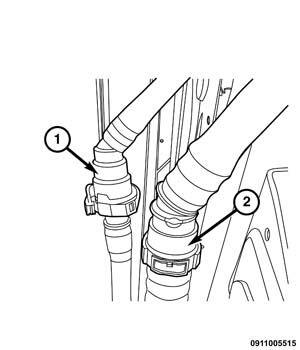

Disconnect the DEF filler hose at filler neck tube (2).
Disconnect the DEF vent hose at filler neck tube (1).
Remove support and partially lower the vehicle.
Remove the left rear wheel house splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL .

Fig 2: Remove/Install Tubes
Courtesy of CHRYSLER GROUP, LLC

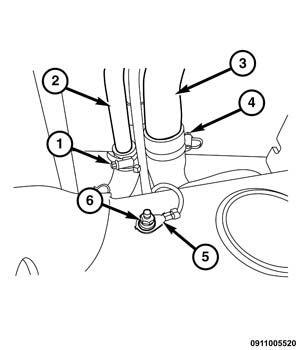

Loosen clamp (4) and disconnect the diesel fuel filler tube.
Loosen clamp (1) and disconnect the diesel fuel vent tube (2).
Remove nut (5) securing the ground wire (5) to frame rail.

Fig 3: Tank Fitting & Fuel Vapor Hose
Courtesy of CHRYSLER GROUP, LLC

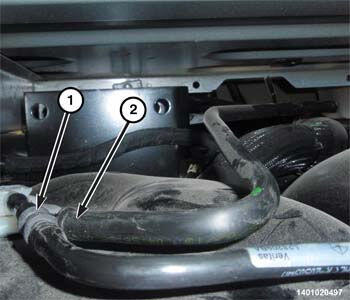

Disconnect the fuel vapor hose (2) from tank fitting (1).

Fig 4: DEF Cap
Courtesy of CHRYSLER GROUP, LLC
Lower the vehicle.

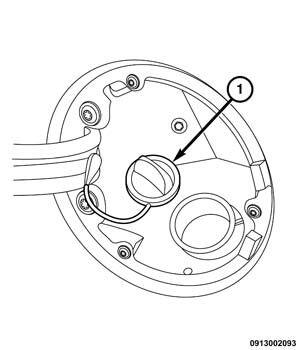

Remove the DEF cap (1).

Fig 5: Fuel Filler Tube Screws
Courtesy of CHRYSLER GROUP, LLC

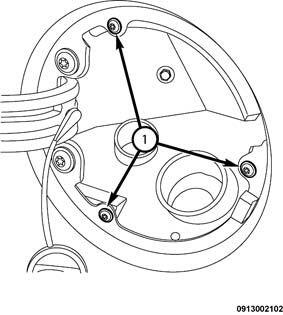

Remove screws and the fuel filler tube through wheel well.
