Antenna, Passive Entry: Removal: Door
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On two door model RAM trucks, the LF antenna is located in the left front door. On four door model RAM trucks, the LF antenna is located in the left rear door.
- Disconnect and isolate the battery negative cable.
- Remove the front left door panel on the two door model vehicle. Refer to PANEL, DOOR TRIM, REMOVAL . If vehicle is a 4 door model, refer to PANEL, REAR DOOR TRIM, REMOVAL .

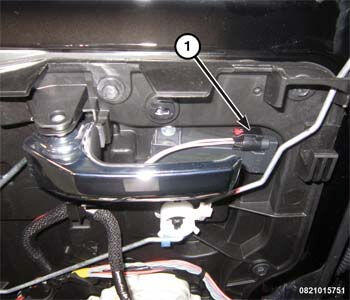

- Disconnect the door wire harness connector (1) from the Low Frequency (LF) antenna.
- Remove the two screws that secure the LF antenna to the door.
- Remove the LF antenna from the door.
