Rear Cabin Wall
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

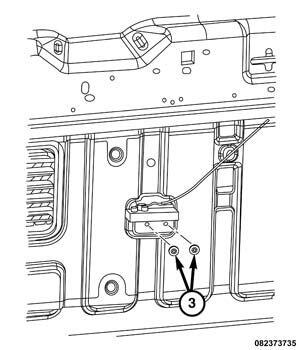

- Install both fasteners (3) to secure the LF antenna (1) in place.

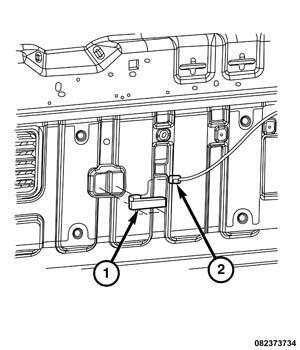

- Connect the connector (2) to the LF antenna.
- Position the rear cabin wall in place and secure using push pins. Refer to PANEL, CAB BACK TRIM, INSTALLATION .
- Install right rear child seat tether. Refer to ANCHOR, CHILD SEAT, INSTALLATION .
- Install right rear seat. Refer to SEAT, REAR, INSTALLATION or SEAT, MEGA CAB REAR, INSTALLATION .
- Install the right rear seat rear inboard bolt with seat belt buckle. Refer to SEAT BELT, INSTALLATION .
- Flip the right rear seat cushion back into the proper position for seating.
- Reconnect negative battery cable to the negative terminal on the battery.
