Lamp, Courtesy, Seat: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

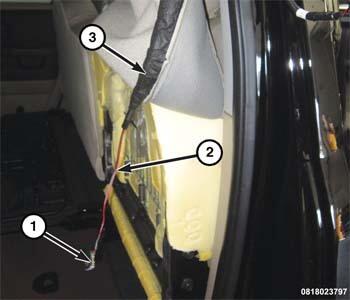

Fig 1: Courtesy Seat Lamp Connector & Harness
GC0158091Courtesy of CHRYSLER GROUP, LLC
  1. Slide the LED lamp (1) and harness (2) through the harness cover (3).
  2. The LED lamp and harness need to be pulled through far enough so that there is enough room to connect the lamp to the seat cover.

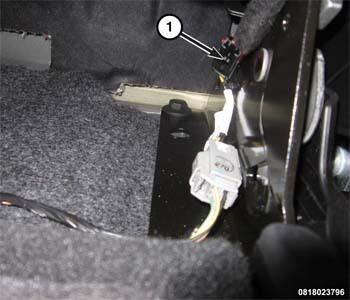

    Fig 2: Courtesy Seat Lamp Connector
    GC0158102Courtesy of CHRYSLER GROUP, LLC
  3. Connect the LED wiring harness to the harness connector (1) located at the outboard seat riser.
  4. Pull the seat cover into position enough so that the LED lamp can be inserted into the cover.
  5. Install the seat cover to the seat. Refer to COVER, SEAT CUSHION, REAR, INSTALLATION or COVER, SEAT CUSHION, MEGA CAB REAR, INSTALLATION .

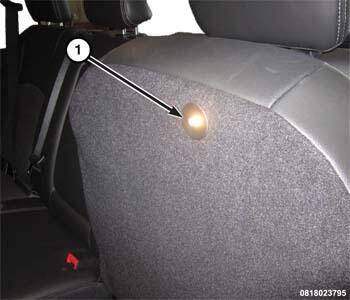

    Fig 3: Courtesy Seat Lamp
    GC0158160Courtesy of CHRYSLER GROUP, LLC
  6. Take care to not allow the LED lamp fall out of position from the cover during the seat cover installation. The properly installed seat bottom LED lamp (1) should appear as shown in illustration.
  7. Connect the negative battery cable back to the proper battery post.
