1500 Light Duty
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

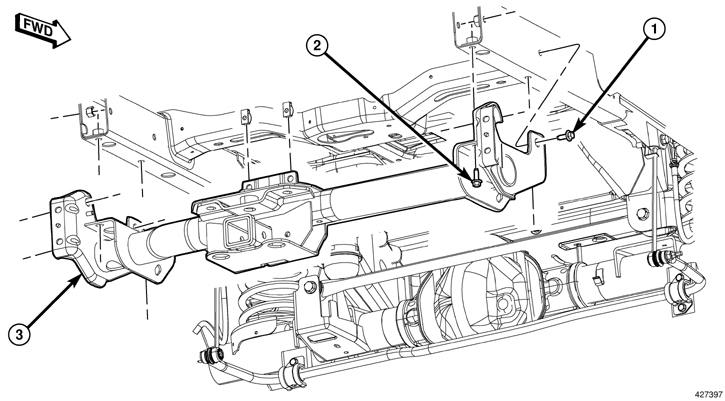

- Install the hitch (3) and install the four bolts (2).
- Install the four bolts (1).
- Tighten the bolts (2) to 190 N.m (140 ft. lbs.).
- Tighten the bolts (1) to 190 N.m (140 ft. lbs.).
- Install the rear bumper. Refer to BUMPER, REAR, INSTALLATION .
