Module, Transmission Control: Installation: AISIN

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position and install the Transmission Control Module (TCM) to the bracket.

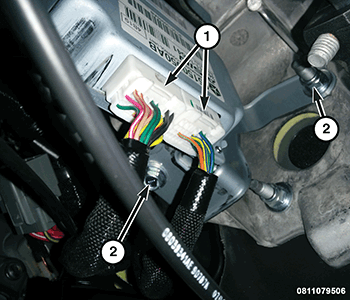

    Fig 1: TCM Bracket Bolts & Connectors
    GC0169634Courtesy of CHRYSLER GROUP, LLC
  2. Position the TCM with bracket to the vehicle for installation.
  3. Install the two retaining bolts (2) that secure the TCM with bracket to the vehicle.
  4. Connect the wiring harness connectors (1) to the TCM.
  5. Connect the negative battery cable.
