Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR RELATED DTCS
1. With the scan tool, read DTCs.
  Are there any line pressure sensor or throttle position sensor DTCs present?

  Yes
  - Refer to Diagnosis and Testing and perform the appropriate diagnostic procedure .
  No
  - Go To 2.
CHECK IF THE DTC IS CURRENT
1. With the scan tool, read DTCs.
  Is the status Active or is the Starts Since Set counter 2 or less for this DTC?

  Yes
  - Go To 3.
  No
  - Go To 5.
TRANSMISSION TEMPERATURE SENSOR
1. Turn the ignition off to the lock position.
2. Remove the Ignition Switch Feed fuse from the TIPM.
  CAUTION:
  Removal of the Ignition Switch Feed fuse from the TIPM will prevent the vehicle from being started in gear.

  WARNING:
  The Ignition Switch Feed fuse must be removed from the TIPM. Failure to do so can result in possible serious or fatal injury.
3. Install the Transmission Simulator (special tool #8333A, Simulator, Transmission).
4. Ignition on, engine not running.
5. With the Transmission Simulator, turn the Input/Output switch to OFF.
6. With the scan tool, monitor the Transmission Temperature voltage while turning the Thermistor Voltage switch to all three positions on the Transmission Simulator.
7. Compare the scan tool readings with the numbers listed on the Transmission Simulator.
  Do the readings on the Transmission Simulator match the scan tool readings ± 0.2 of a volt?

  Yes
  - Replace Transmission Solenoid/TRS Assembly in accordance with the Service Information.
  - Perform the appropriate TRANSMISSION VERIFICATION TEST. Refer to 68RFE TRANSMISSION VERIFICATION TEST .
  No
  - Go To 4.
CHECK THE (T54) TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

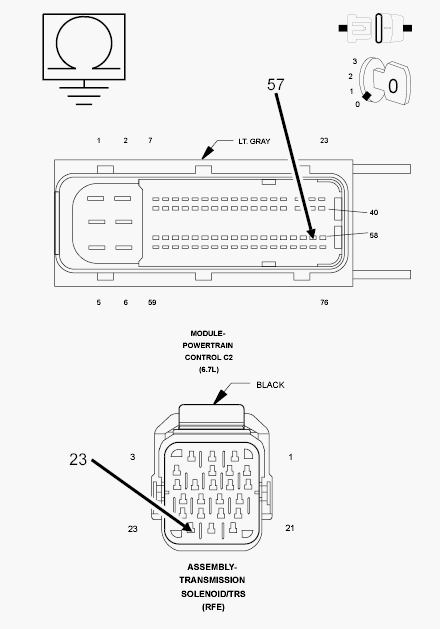

Fig 1: Checking Transmission Temperature Sensor Signal Circuit For Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off to the lock position.
2. Disconnect the Transmission Simulator (special tool #8333A, Simulator, Transmission).
3. Disconnect the PCM C2 harness connector.
  NOTE:
  Check connectors - Clean/repair as necessary.
4. Measure the resistance between ground and the (T54) Transmission Temperature Sensor Signal circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (T54) Transmission Temperature Sensor Signal circuit for a short to ground.
  - Perform the appropriate TRANSMISSION VERIFICATION TEST. Refer to 68RFE TRANSMISSION VERIFICATION TEST .
  No
  - Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the PCM in accordance with the Service Information. With the scan tool, perform Quick Learn.
  - Perform the appropriate TRANSMISSION VERIFICATION TEST. Refer to 68RFE TRANSMISSION VERIFICATION TEST .
CHECK THE WIRING AND CONNECTORS
1. The conditions necessary to set this DTC are not present at this time.
2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
3. Wiggle the wires while checking for shorted and open circuits.
4. With the scan tool, check the Event Data to help identify the conditions in which the DTC was set.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the appropriate TRANSMISSION VERIFICATION TEST. Refer to 68RFE TRANSMISSION VERIFICATION TEST .
  No
  - Test Complete.
