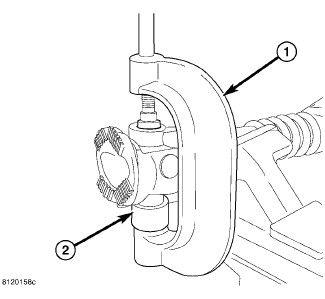

Fig 1: Positioning U-joint Press With Receiver On Propeller Shaft Yoke

Courtesy of CHRYSLER LLC

Place shaft yoke in vise.
Position U-joint press (1) with receiver (2) on propeller shaft yoke.

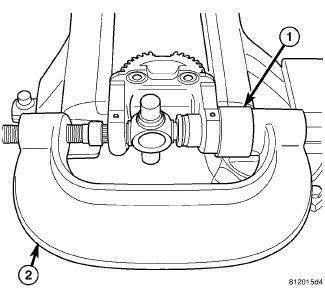

Fig 2: Pressing U-joint Bearing Caps Out Of Shaft Yoke
Courtesy of CHRYSLER LLC
Pressed U-joint bearing caps (1) out of shaft yoke (2).
Remove lower bearing cap from shaft yoke.

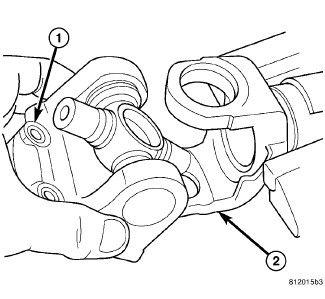

Fig 3: Pressing U-joint Bearing Cap
Courtesy of CHRYSLER LLC
Turn shaft over and position press (1) with receiver (2) on shaft yoke.
Press remaining U-joint bearing cap out of shaft yoke.

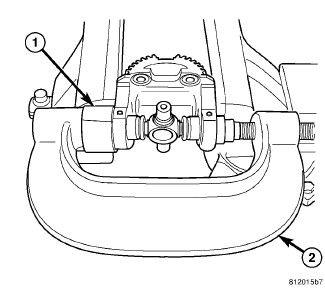

Fig 4: Removing Flange
Courtesy of CHRYSLER LLC
Remove flange (1) with U-joint out of shaft yoke (2).

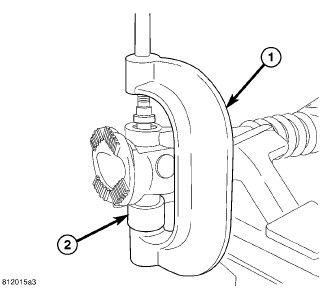

Fig 5: U-joint Press (2) With Receiver
Courtesy of CHRYSLER LLC
Position U-joint press (2) with receiver (1) on flange.

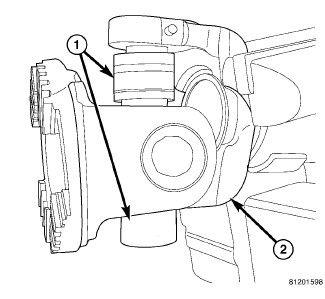

Fig 6: Pressing U-joint Bearing Caps Out Of Flange
Courtesy of CHRYSLER LLC
Press U-joint bearing caps (1) out of flange (2).
Remove bearing cap on the outside of the flange.

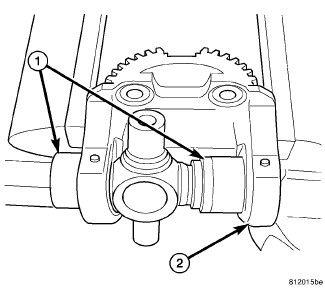

Fig 7: U-joint Press (2) With Receiver
Courtesy of CHRYSLER LLC
Position U-joint press (2) with receiver (1) on flange.
Press remaining U-joint bearing cap out of flange.
Remove U-joint from flange.
