With Injected Ring

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

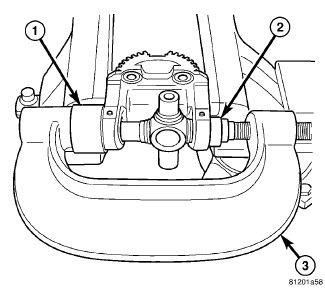

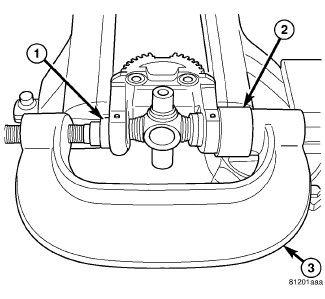

Fig 1: U-joint Press With Receiver

Courtesy of CHRYSLER LLC

NOTE:

Replacement joint has internal snap rings.

Place joint in flange with one bearing cap.
Position press (3) with receiver (1) on flange and bearing cap (2).

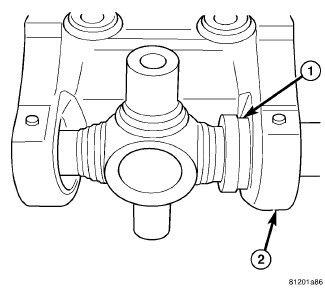

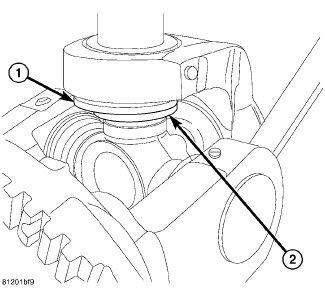

Fig 2: Identifying Snap Ring Groove And Flange
Courtesy of CHRYSLER LLC
Press bearing cap until snap ring groove (1) is through the flange (2).

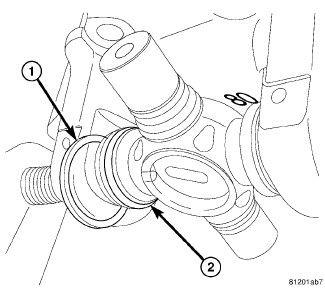

Fig 3: Identifying Snap Ring And Bearing
Courtesy of CHRYSLER LLC
Install snap ring (2) on bearing (1).

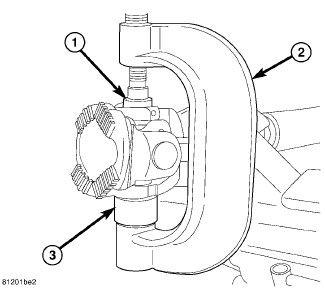

Fig 4: U-joint Press With Receiver
Courtesy of CHRYSLER LLC
Position press (3) with receiver (2) on remaining bearing cap (1) and flange.
Press bearing cap until snap ring groove is through the flange.

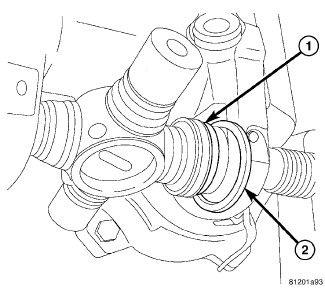

Fig 5: Identifying Snap Ring On Bearing Cap
Courtesy of CHRYSLER LLC
Install snap ring (1) on bearing cap (2).

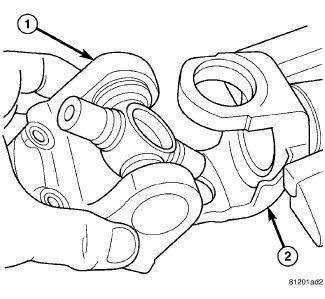

Fig 6: Identifying Flange With U-joint In Yoke
Courtesy of CHRYSLER LLC
Install flange (1) with U-joint in yoke (2).

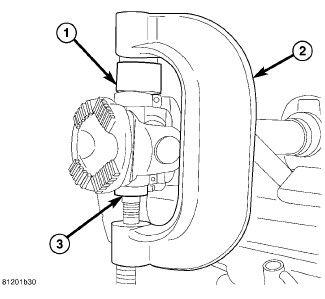

Fig 7: U-joint Press With Receiver
Courtesy of CHRYSLER LLC
Position press (2) with receiver (1) and lower bearing cap (3) on yoke.
Press bearing cap until snap ring groove is through the yoke.

Fig 8: Installing Snap Ring On Bearing Cap
Courtesy of CHRYSLER LLC
Install snap ring (2) on bearing cap (1).

Fig 9: U-joint Press With Receiver
Courtesy of CHRYSLER LLC
Position press (2) with receiver (3) on remaining bearing cap (1) and yoke.
Press remaining bearing cap until snap ring groove is through the yoke.

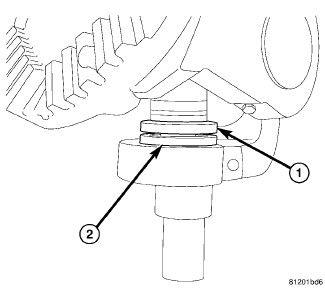

Fig 10: Installing Snap Ring On Bearing Cap
Courtesy of CHRYSLER LLC
Install snap ring (2) on bearing cap (1).
