SHAFT, Drive, Rear Heavy Duty: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

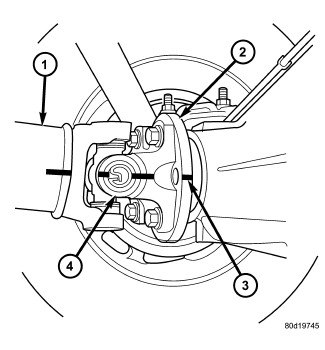

Fig 1: Aligning Reference Marks

Courtesy of CHRYSLER LLC

With vehicle in neutral, position vehicle on hoist.
Mark propeller shaft (1) pinion flange (2) and propeller shaft flange (4) with installation reference marks (3).

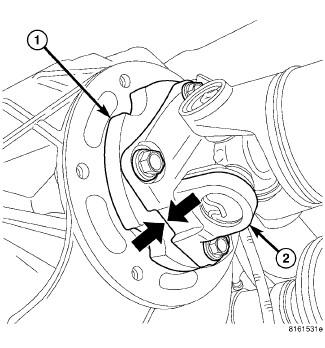

Fig 2: Marking Manual Transmission Flange And Propeller Shaft Flange
Courtesy of CHRYSLER LLC
Mark transmission flange (1) if equipped and propeller shaft flange (2) for installation reference.

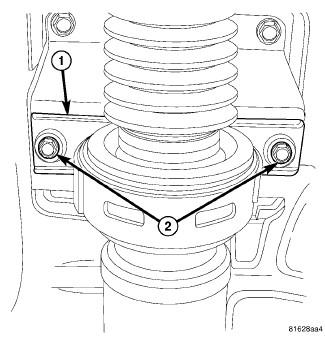

Fig 3: Center Bearing HD
Courtesy of CHRYSLER LLC
If equipped with a center bearing (1) mark an outline of the center bearing on the center bearing bracket for installation reference. Then support propeller shaft and remove center bearing bolts (2).

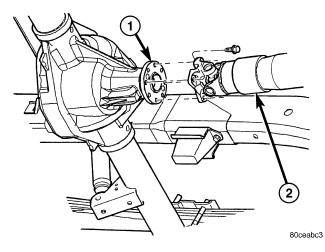

Fig 4: Removing/installing Rear Propeller Shaft
Courtesy of CHRYSLER LLC
Remove pinion flange (1) bolts from propeller shaft (2).

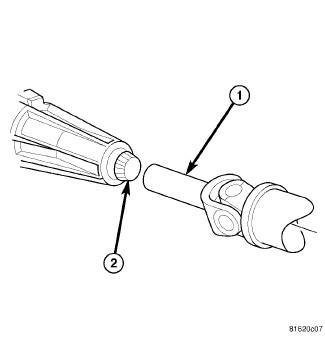

Fig 5: View Of Slip Yoke
Courtesy of CHRYSLER LLC
Slide propeller shaft back off automatic transmission/transfer case output shaft, then mark propeller shaft (1) and transmission/transfer case output shaft (2) for installation reference.

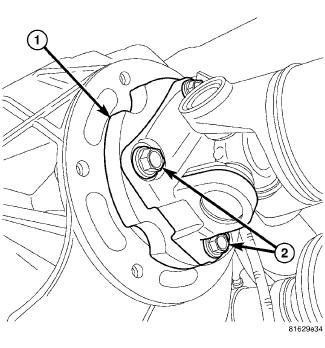

Fig 6: Identifying Transmission Flange And Bolts
Courtesy of CHRYSLER LLC
If equipped with transmission flange (1) remove bolts (2).
Remove propeller shaft from vehicle.

CAUTION:

Failure to follow these instructions may result in a driveline vibration.
