SHAFT, Drive, Front Heavy Duty: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

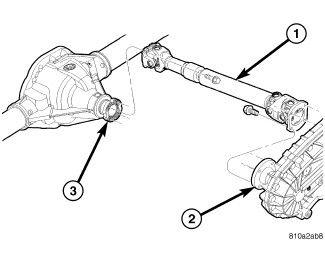

Fig 1: Identifying HD Front Propeller Shaft
GC0107579Courtesy of CHRYSLER LLC
  1. With vehicle in neutral, position vehicle on hoist.
  2. Remove exhaust crossover pipe.
  3. Mark a line across axle (3) transfer case (2) companion flange and propeller shaft flange yokes for installation reference.
  4. Remove axle/transfer case companion flange bolts.
  5. Remove propeller shaft.
