Center Seat Storage Mounted

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

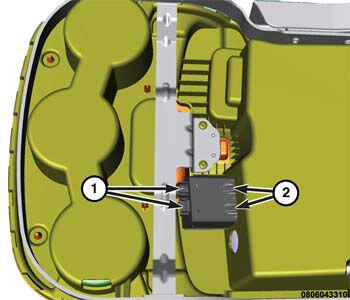

Fig 1: Media Hub Wire Harness Connectors & Retaining Tabs - Center Seat Storage Mounted

Courtesy of CHRYSLER GROUP, LLC

Insert the media hub into the center seat storage bin.
Securely engage the four retaining tabs (2).
Connect the electrical connectors (1).
Install the front center seat cover. Refer to SEAT, FRONT CENTER .
Connect the negative battery cable.
