Valve, Exhaust Gas RECIRCULATION (EGR), 6.7L Diesel: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Engine Cover, Bolts & Oil Dipstick

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate both of the negative battery cables.
Remove the engine oil dipstick (2).
Remove bolts (1) and the engine cover (3).

Fig 2: EGR Valve & Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the EGR valve wire harness connector (1).

Fig 3: EGR Crossover Tube
Courtesy of CHRYSLER GROUP, LLC
Loosen clamp (1), remove clamp (3) at EGR valve.
Remove bolt (5) at center bottom of EGR crossover tube.

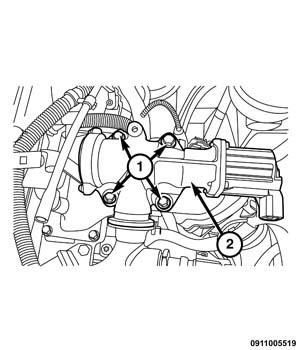

Fig 4: EGR Valve Assembly & Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove bolts (1) and the EGR valve assembly (2).

Fig 5: EGR Valve Gaskets
Courtesy of CHRYSLER GROUP, LLC
Remove crossover tube gasket (1) and clean EGR valve. Also clean end of EGR tube of any old gasket material.
Remove two gaskets on bottom EGR valve (4). Clean bottom of EGR valve and top of its intake connection point of any old gasket material.
