6.4L Y-Pipe

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Unplug the upstream and downstream oxygen sensors. Swap over the sensors as necessary.

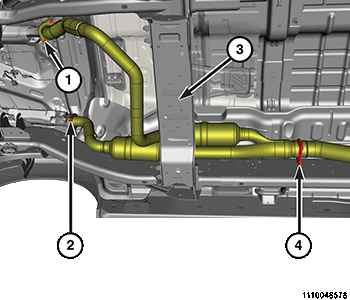

    Fig 1: Exhaust Pipe To Manifold Bolts, Crossmember & Y-Pipe Clamp
    GC0169666Courtesy of CHRYSLER GROUP, LLC
  3. Remove and discard  the exhaust pipe to manifold bolts (1, 2) and nuts.
  4. Loosen the exhaust extension pipe to Y-pipe clamp (4) and separate the two pipes.
  5. Shift the exhaust extension pipe and muffler rearward.
  6. Carefully remove the Y-pipe from above the crossmember (3).
