Muffler, Exhaust: Removal: 5.7L
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Saturate the clamp nuts with heat valve lubricant and allow 5 minutes for penetration.
- Remove the tailpipe from the muffler. Refer to TAILPIPE, EXHAUST, REMOVAL .

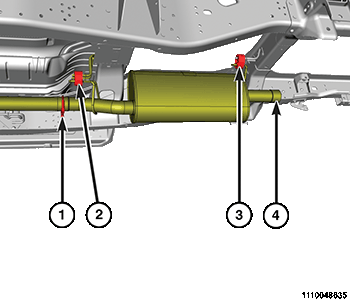

- Disengage the muffler from the hanger isolators (2, 3).
- Loosen band clamp nut (1) from the exhaust extension pipe and remove the muffler from the extension pipe.
