Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Possible Causes
TRANSMISSION RANGE SENSOR NOT PROPERLY CALIBRATED
(T807) PRESSURE SIGNAL 8 SHORT TO VOLTAGE
(T807) PRESSURE SIGNAL 8 SHORT TO ANOTHER CIRCUIT
(T807) PRESSURE SIGNAL 8 SHORT TO GROUND
(T807) PRESSURE SIGNAL 8 OPEN
PRESSURE SWITCH 8
TRANSMISSION RANGE SENSOR NOT PROPERLY CALIBRATED
TRANSMISSION RANGE SENSOR
TRANSMISSION CONTROL MODULE (TCM)

Always perform the AS68RC Pre-Diagnostic Troubleshooting procedure before proceeding. Refer to  Standard Procedure  .



  1. CHECK IF DTC IS CURRENT
    NOTE:

    This DTC may set if the Transmission Range Sensor has been replaced or reinstalled and not properly adjusted (calibrated). Make sure the TRS is properly adjusted in accordance to the Service Information before attempting to perform this diagnostic procedure. If the TRS was improperly adjusted, adjust as necessary and perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .

    1. Using the scan tool, read TCM DTCs.
    2. Record the Environmental Data and any DTCs.
    3. Clear DTCs.
    4. Using the recorded Environmental Data, along with the When Monitored and Set Conditions above, operate the vehicle in the conditions that set the DTC.
    5. Read TCM DTCs.

      Did the DTC reset?

      Yes

      • Go To  2.

      No

      • Go To  8.
  2. CHECK PRESSURE SWITCH 8 READING ON THE SCAN TOOL
    1. Ignition on, engine not running.
    2. With the scan tool, monitor the Pressure Switch 8 state (Open-Closed) in the next step.
    3. Move the shift lever to each of the shift lever positions (P, R, N, D, 3, 2, and 1).

      Does the Pressure Switch 8 read "Closed" in all shift positions?

      Yes

      • Go To  4.

      No

      • Go To  3.
  3. COMPARE PRESSURE SWITCH 8 STATE TO SHIFT LEVER POSITION
    1. With the scan tool, monitor the Pressure Switch 8 state (Open-Closed) in the following step(s).
      CAUTION:

      Apply the parking brake.

    2. Start the engine and with the brakes firmly applied, move the shift lever to each of the shift lever positions (P, R, N, D, 3, 2, 1) and record your findings.

      Select the answer that best describes your readings:

      Pressure Switch 8 reads "Closed" in P, R, or N.

      • This is an indication of a hydraulic leak into the Pressure Solenoid 8 hydraulic oil circuit. Inspect the Valve Body and control valves for internal hydraulic leakage, sticking, scored etc. and repair or replace as necessary.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .

      Pressure Switch 8 reads "Open" in all shift positions.

      • Go To  6.
  4. CHECK THE PRESSURE SWITCH 8
    1. Turn the ignition off to the lock position.
    2. Disconnect the Transmission Solenoid C1 harness connector.
    3. Ignition on, engine not running.
    4. With the scan tool, read the Pressure Switch 8 state (Open-Closed).

      Does the Pressure Switch 8 state read as "Closed"?

      Yes

      • Go To  5.

      No

      • Inspect the transmission internal wiring from the Transmission Solenoid C1 connector to the Pressure Switch 8 harness connector for damage, chafing or a short to ground and repair or replace as necessary. If no problems are found, replace the Pressure Switch 8 in accordance with the Service Information.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .
  5. CHECK THE (T807) PRESSURE SIGNAL 8 CIRCUIT FOR A SHORT TO GROUND
    1. Turn the ignition off to the lock position.
    2. Disconnect the TCM C3 harness connector.
    3. Ignition on, engine not running.
    4. With the scan tool, read the Pressure Switch 8 state (Open-Closed).

      Does the Pressure Switch 8 state read as "Closed"?

      Yes

      • Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the TCM in accordance with the Service Information.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Repair the (T807) Pressure Signal 8 circuit for a short to ground.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .
  6. CHECK THE PRESSURE SWITCH

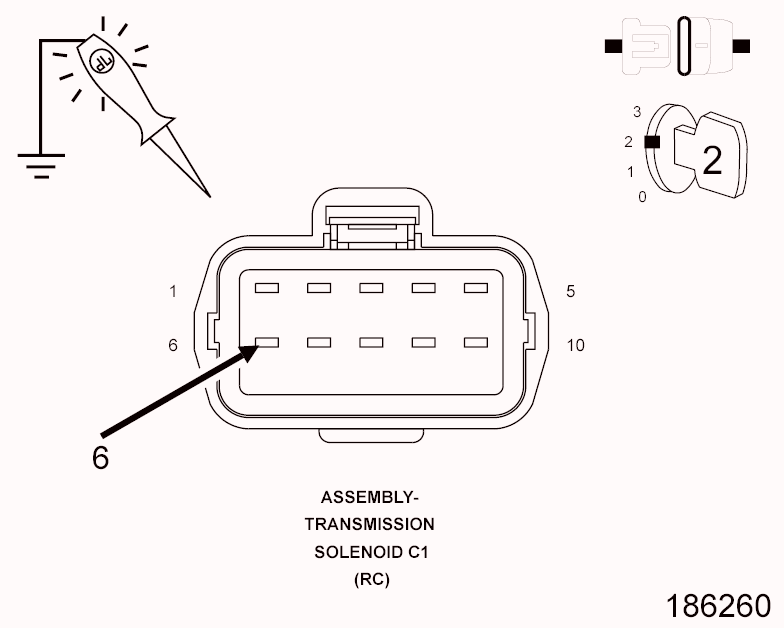

    Fig 1: Checking Transmission Solenoid C1 Harness Connector Terminals Using 12-volt Test Light Connected To Ground
    GC0111516Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position.
    2. Disconnect the Transmission Solenoid C1 harness connector.
    3. Ignition on, engine not running.
    4. With the scan tool, monitor the Pressure Switch 8 state (Open-Closed) in the following step.
    5. Using a 12-volt test light connected to ground, probe the (T807) Pressure Switch 8 Signal circuit in the Transmission Solenoid C1 harness connector while monitoring the Pressure Switch 8 state on the scan tool.

      Does the scan tool show the Pressure Switch 8 state change from "Open" to "Closed" when probing the Pressure Switch 8 Signal circuit?

      Yes

      • Check the transmission internal wiring and connectors for the (T807) Pressure Switch 8 Signal circuit between the Transmission Solenoid C1 connector and the Pressure Switch 8 harness connector for an open and repair or replace as necessary. Also check if the Pressure Switch 8 is properly torqued in the valve body. If no problems are found, replace the Pressure Switch 8 in accordance with the Service Information.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  7.
  7. CHECK THE (T807) PRESSURE SIGNAL 8 CIRCUIT FOR AN OPEN

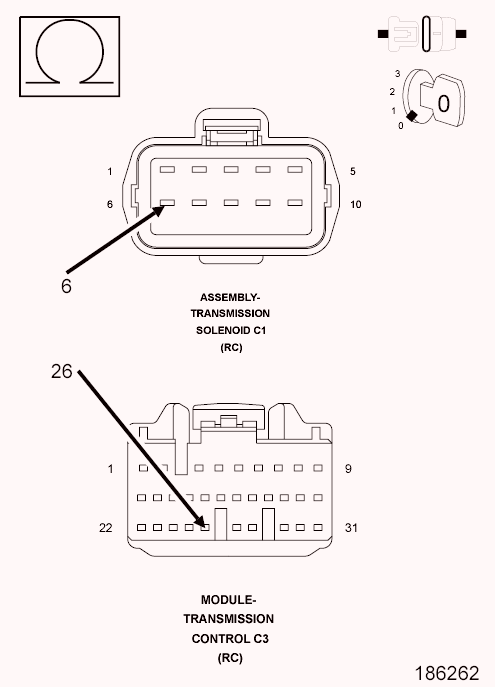

    Fig 2: Checking Pressure Signal No. 8 Circuit For An Open
    GC0111517Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position.
    2. Disconnect the Transmission Solenoid C1 harness connector.
    3. Measure the resistance of the (T807) Pressure Signal 8 circuit between the TCM C3 harness connector and Transmission Solenoid C1 harness connector.

      Is the resistance above 5.0 Ohms?

      Yes

      • Repair the (T807) Pressure Signal 8 circuit for an open.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Using the schematics as a guide, check the Transmission Control Module (TCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. Check for Service Information Tune-ups or Service Bulletins for any possible causes that may apply. If no problems are found, replace and program the TCM in accordance with the Service Information.
      • Perform AS68RC VERIFICATION TEST. Refer to Standard Procedure .
  8. CHECK WIRING AND CONNECTORS
    1. The conditions necessary to set the DTC are not present at this time.
    2. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
    3. Wiggle the wires while checking for shorted and open circuits.
    4. Check for any Service Bulletins that may apply.

      Were there any problems found?

      Yes

      No

      • Test Complete.
