Bottle, Coolant Recovery: Removal: Removal
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the exterior grille. Refer to GRILLE, REMOVAL .
- Remove the recovery hose from the radiator.NOTE:

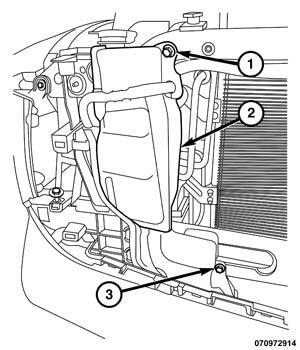

The lower support bolt is located under the lower active shutter seal. Illustration is shown without the active shutter for clarity.
- Remove the lower coolant recovery bottle (2) lower support bolt (3).
- Remove the upper coolant recovery bottle to radiator support bolt (1).
- Remove the coolant recovery bottle by pulling the assembly up and away from support.
