6.4L - Secondary Generator
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Care must be used when removing the accessory drive belt. Always wear appropriate eye and hand protection and use extreme caution when working with the belt.
- Disconnect the negative battery cable.
- Raise the vehicle.
- Remove the lower fan shroud.NOTE:
The drive belt is a one time use only. If the belt is removed for repairs. It must be replaced with a new belt.

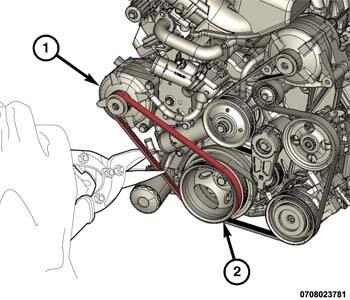

- Using care, Cut the secondary generator drive belt.
