Gauge Pack, Instrument Cluster: Description: Premium: Notes
WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

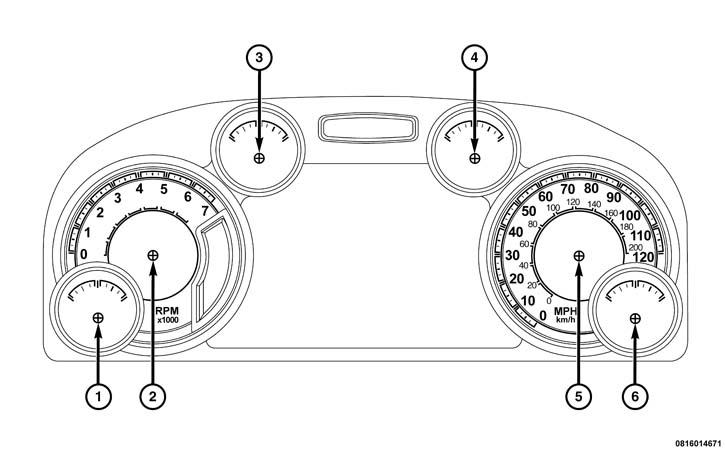

The premium instrument cluster includes the following analog gauges:
- Variable:
- Gasoline: Engine Coolant Temperature
- Diesel: Diesel Exhaust Fluid (DEF) Level
- CNG: Compressed Natural Gas Level
- Tachometer
- Gasoline: variable; no redline due to multiple engine variants
- Diesel: 5000 RPM
- Variable:
- Gasoline: Battery Voltage
- Diesel: Engine Coolant Temperature
- CNG: Engine Coolant Temperature
- Oil Pressure
- Speedometer
- Fuel Level
Gauges are illuminated by LEDs that are soldered onto the Instrument Panel Cluster (IPC) electronic circuit board. Cluster illumination is accomplished by dimmable LEDs soldered onto the IPC electronic circuit, which illuminate each of the gauges for visibility when the exterior lighting is turned ON. The gauges and LED units are not available for service replacement, and if damaged or inoperative, the entire IPC must be replaced.
