Leaf Spring

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

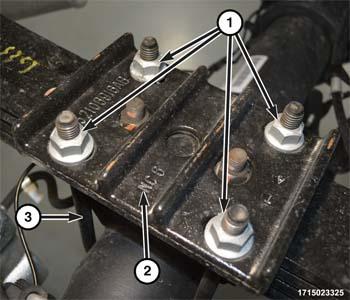

Fig 1: Leaf Spring Plate, Clamp Bolts & Nuts

Courtesy of CHRYSLER GROUP, LLC

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Support the axle with a suitable holding fixture.
Remove the nuts (1), spring clamp bolts (3) and the plate (2) that attach the spring to the axle.

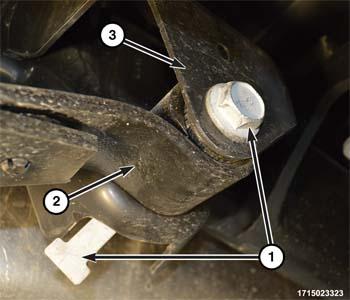

Fig 2: Front Spring Mount, Eye, Bolt & Flange Nut
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt and flag nut (1) from the front spring eye (2) to the front spring mount (3).

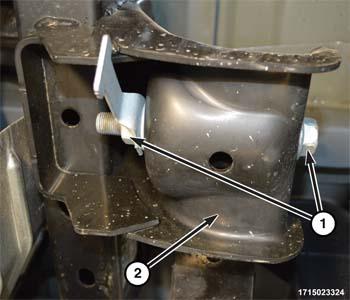

Fig 3: Rear Shackle Mount, Bolt & Flag Nut
Courtesy of CHRYSLER GROUP, LLC
Remove the bolt and flag nut (1) to the spring rear shackle mount (2).
Remove the spring from the vehicle.

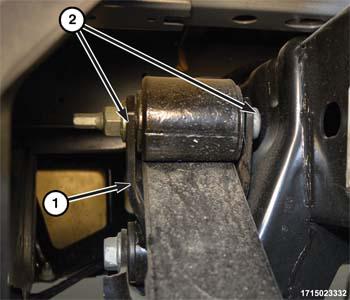

Fig 4: Shackle, Bolt & Nut
Courtesy of CHRYSLER GROUP, LLC
Transfer the shackle (1) by removing the bolt and nut (2) if needed.
