Shock With Leaf Spring

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

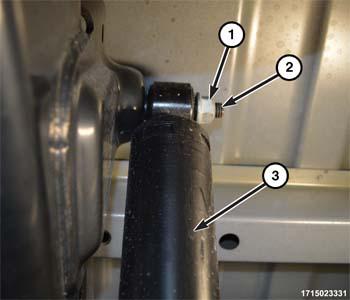

Fig 1: Shock Absorber, Upper Nut & Stud
GC0161581Courtesy of CHRYSLER GROUP, LLC
  1. Position the top of the shock (3) onto the upper stud (2) and install the nut (1). Do not tighten.

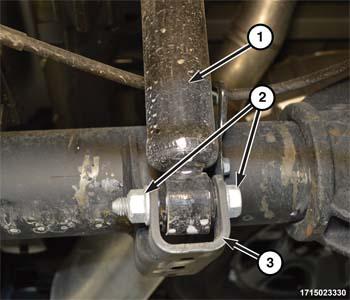

    Fig 2: Shock Absorber, Lower Bolt & Nut
    GC0161543Courtesy of CHRYSLER GROUP, LLC
  2. Position the lower shock absorber (1) into the mount (3) and install the nut and bolt (2). Do not tighten.
  3. Remove the holding fixture supporting the axle.
  4. Remove the support and lower the vehicle.
  5. Tighten upper and lower shock bolt and nuts to specifications. Refer to SPECIFICATIONS .
