Seal, Axle Drive Shaft: Removal: Removal: Left: Right

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The differential does not need to be removed to service the right axle seal.

  1. Remove right side hub bearing and axle shaft.

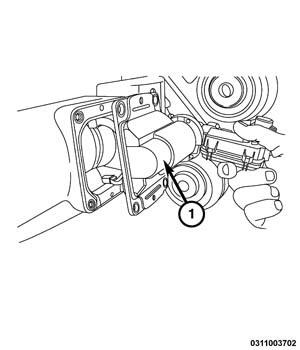

    Fig 1: 4WD Shift Actuator
    GC0155100Courtesy of CHRYSLER GROUP, LLC
  2. Remove the 4WD shift actuator (1).

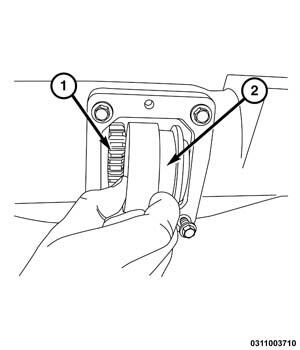

    Fig 2: 4WD Shift Collar
    GC0155386Courtesy of CHRYSLER GROUP, LLC
  3. Remove the 4WD shift collar (2).
  4. Remove the right side axle shaft seal using (special tool #8476, Installer, Seal), (special tool #C-4171, Driver Handle, Universal) and (special tool #C-4171-2, Extension, Drive Handle)
  5. Drive the axle seal inward to remove it.
