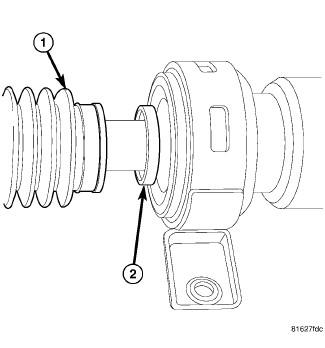

Fig 1: Installing Center Bearing And Boot Collar On Shaft

Courtesy of CHRYSLER GROUP, LLC

Slide center bearing (1) and boot collar (2) on shaft.

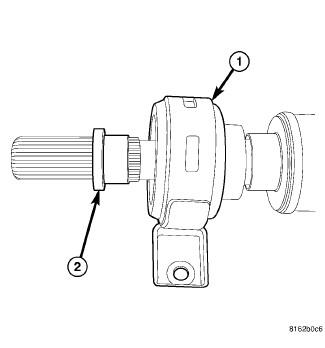

Fig 2: Installing Boot Collar And Center Bearing
Courtesy of CHRYSLER GROUP, LLC
Install boot collar (2) and center bearing (1) with Installer (special tool #6448A, Installer, Bearing/Gear).
Clean shaft splines and apply a coat of multi-purpose grease.
Align master splines and slide front and rear half-shafts together.

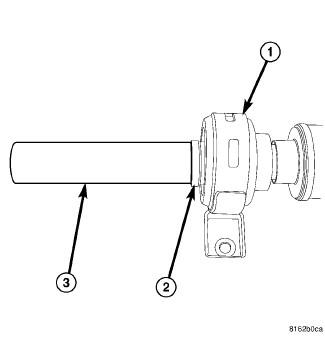

Fig 3: Boot And Collar
Courtesy of CHRYSLER GROUP, LLC
Slide slip yoke boot (1) on boot collar (2).

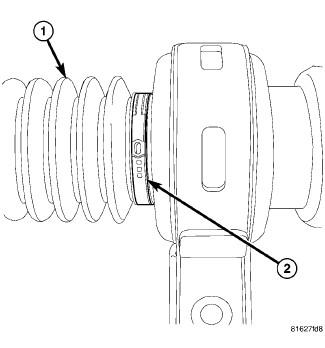

Fig 4: Slip Joint Boot And Clamp
Courtesy of CHRYSLER GROUP, LLC
Install slip yoke boot (1) clamp (2).
Install propeller shaft in vehicle.
