Housing, Timing Case, Front: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front Timing Case Housing Components
GC0155250Courtesy of CHRYSLER GROUP, LLC
  1. Inspect oil pan gasket. If torn, gasket must be replaced.
  2. Install a new front timing case housing gasket (4).
  3. Place a small amount of Mopar® engine RTV to the corners of the block and pan gasket T-joint to ensure a good seal.
  4. Install the front timing case housing (3) and tighten bolts (1, 3) finger tight.

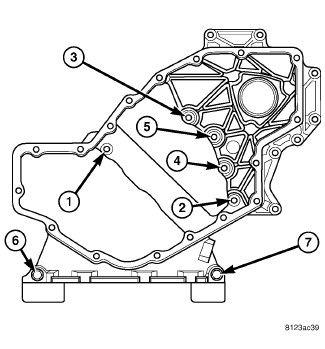

    Fig 2: Gear Housing Capscrew Torque Sequence
    GC0108631Courtesy of CHRYSLER GROUP, LLC
  5. Using the tightening sequence shown in illustration, tighten bolts to 24 N.m (18 ft. lbs.).
    Fig 3: Oil Pan Bolts
    GC0155254Courtesy of CHRYSLER GROUP, LLC
  6. Install the front six oil pan bolts (1) and tighten to 43 N.m (32 ft. lbs.).
  7. Install Crankshaft Position (CKP) sensor. Refer to SENSOR, CRANKSHAFT POSITION, INSTALLATION .
  8. Install the fuel injection pump. Refer to PUMP, FUEL INJECTION, INSTALLATION .
  9. Install the power steering pump. Refer to PUMP, INSTALLATION .
  10. Install the camshaft. Refer to CAMSHAFT, ENGINE, INSTALLATION, 6.7L .
  11. Connect both of the negative battery cables.
  12. Start engine and inspect for leaks.
