Lines And Hoses, Turbocharger, Oil And Coolant: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

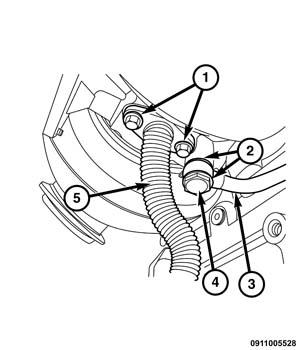

Fig 1: Bolts, Sealing Washers, Turbocharger Coolant Tube, Banjo Bolt & Turbocharger Drain Tube

Courtesy of CHRYSLER GROUP, LLC

Remove the RH engine mount. Refer to INSULATOR, ENGINE MOUNT, FRONT, REMOVAL, 6.7L and/or INSULATOR, ENGINE MOUNT, REAR, REMOVAL, 6.7L .
Drain the cooling system. Refer to STANDARD PROCEDURE .
Remove the bolts (1) and the turbocharger oil drain tube (5) from the turbocharger.
Remove the banjo bolt (4) and the turbocharger coolant tube (3) from the turbocharger.

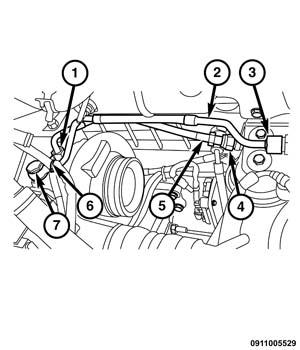

Fig 2: Union Nuts, Coolant Tube, Turbocharger Oil Supply Line, Cable Tie & Banjo Bolt
Courtesy of CHRYSLER GROUP, LLC
Cut the cable tie (6) securing the NOx sensor wire to coolant tube (2).
Remove the coolant tube (2) banjo bolt (7) from turbocharger.
Remove the union nut (3) and the coolant tube (2).
Remove the turbocharger oil supply line (5) union nut (4).
Remove the union nut (1) and the oil supply line (5).
