Cooler And Lines, Oil: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Cover, Bolts & Oil Dipstick
GC0161582Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate both of the negative battery cables.
  2. Remove the oil dipstick (2).
  3. Remove bolts (1) and the engine cover (3).
  4. Drain the coolant. Refer to STANDARD PROCEDURE .
  5. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL, 6.7L .
    Fig 2: Identifying Clamp, Outlet Tube & Breather Hose
    GC0108071Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the breather hose (3).
  7. Loosen the clamp (1) and remove the outlet tube (2) from the turbocharger.
  8. Remove the generator. Refer to GENERATOR, REMOVAL .
    Fig 3: Upper Coolant Outlet Tube Components
    GC0108588Courtesy of CHRYSLER GROUP, LLC
  9. Loosen clamp and disconnect the charge air inlet tube (4) from the turbocharger.
    Fig 4: Identifying Clamp, Charge Inlet Tube & Charge Air Cooler (CAC)
    GC0108589Courtesy of CHRYSLER GROUP, LLC
  10. Loosen the clamp (2), disconnect the charge inlet tube (3) from Charge Air Cooler (CAC) (1) and remove charge inlet tube (3).
    Fig 5: Upper Coolant Outlet Tube Components
    GC0157558Courtesy of CHRYSLER GROUP, LLC
  11. Remove the banjo bolt (1) securing coolant hose (2).
  12. Remove bolt (4) and the upper coolant outlet tube (3) from EGR cooler.

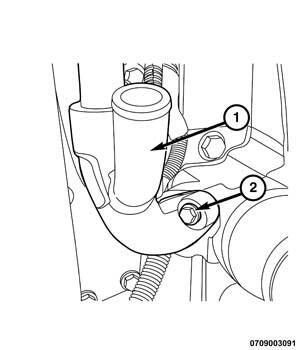

    Fig 6: Removing/Installing Lower Coolant Outlet Tube
    GC0155359Courtesy of CHRYSLER GROUP, LLC
  13. Remove bolt (2) and the lower coolant outlet tube (1).
    Fig 7: Turbocharger Oil Supply Line
    GC0108595Courtesy of CHRYSLER GROUP, LLC
  14. Remove the turbocharger oil supply line from oil cooler housing.

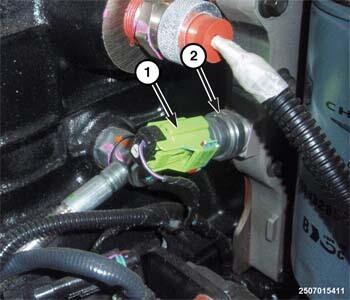

    Fig 8: Oil Pressure Switch & Wire Harness Connector
    GC0161525Courtesy of CHRYSLER GROUP, LLC
  15. Disconnect the oil pressure switch wire harness connector (1).
    Fig 9: Oil Filter, Oil Cooler Housing, Oil Cooler & Gaskets
    GC0108596Courtesy of CHRYSLER GROUP, LLC
  16. Remove the oil filter (1). Refer to FILTER, ENGINE OIL, REMOVAL, 6.7L .
  17. Remove 14 bolts and the oil cooler housing (2) and oil cooler (3) from engine block.
