Valves, Intake And Exhaust: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

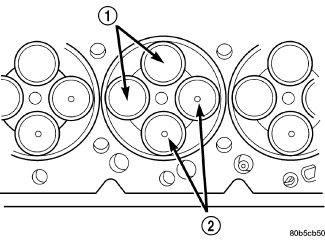

Fig 1: Valve Identification
GC0108527Courtesy of CHRYSLER GROUP, LLC
  1. Install new valve seals. The yellow seals are for the intake valves and the green seals are for the exhaust valves.
  2. Install the valves in their original position. The exhaust valves are identified by a dimple on the valve head.
    Fig 2: Valve Assembly Configuration
    GC0108520Courtesy of CHRYSLER GROUP, LLC
  3. Install the valve (2), springs (4), and retainer (5).
    Fig 3: Spring Compressor Mounting Base-Part Of Tool 8319
    GC0108518Courtesy of CHRYSLER GROUP, LLC
  4. Install the Valve Spring Compressor Tool base (special tool #8319, Compressor, Valve Spring) (1) as shown in illustration.
    Fig 4: Compressing Valve Springs With Tool 8319
    GC0108519Courtesy of CHRYSLER GROUP, LLC
  5. Install the Valve Spring Compressor top plate (1), washer, and nut (special tool #8319, Compressor, Valve Spring).
  6. Compress the valve springs and install the valve retaining locks.
  7. Remove the Valve Spring Compressor tool (special tool #8319, Compressor, Valve Spring) and repeat the procedure on the remaining cylinders.
  8. Install the fuel injectors. Refer to INJECTOR(S), FUEL, INSTALLATION .
  9. Install the cylinder head. Refer to CYLINDER HEAD, INSTALLATION, 6.7L .
