Rocker Housing

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

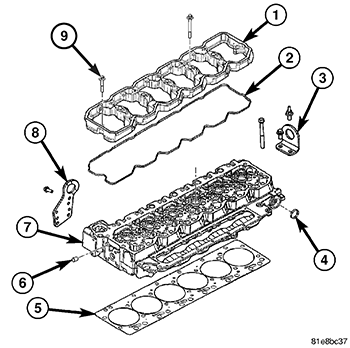

Fig 1: Bolts, Rocker Housing & Gasket
GC0169657Courtesy of CHRYSLER GROUP, LLC
  1. Clean all the gasket sealing surfaces. Refer to ENGINE GASKET SURFACE PREPARATION  .
  2. Install the rocker housing gasket (2) in groove.
    CAUTION:

    When installing rocker housing onto cylinder head, do not slide housing from side to side, The gasket could fall out or be damaged.

  3. Install the rocker housing (1) and tighten bolts (9) finger tight. Working from center out, tighten bolts (9) to 24 N.m (18 ft. lbs.).
  4. Install the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, INSTALLATION, 6.7L .
