Body, Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

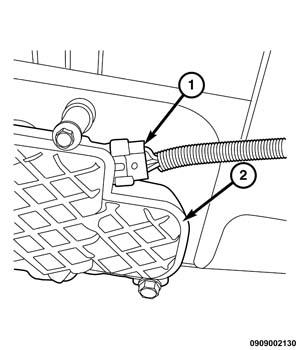

Fig 1: Ram Air Actuator & Wire Harness Connector
GC0155333Courtesy of CHRYSLER GROUP, LLC
  1. Connect the ram air actuator wire harness connector (1).

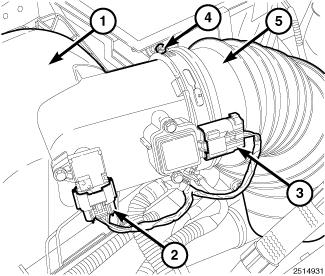

    Fig 2: Identifying MAF Sensor, TBAP Sensor, Intake Air Tube, Air Cleaner Body & Clamp
    GC0137134Courtesy of CHRYSLER GROUP, LLC
  2. Position the air cleaner body (1) onto the rear pegs to battery tray and push down to lock in place.
  3. Install the intake air tube (5) onto the air cleaner body (1). Tighten clamp (4) 4 N.m (35 in. lbs.).
  4. Connect the TBAP sensor wire harness connector (2).
  5. Connect the Mass Air Flow (MAF) sensor wire harness connector (3).
    Fig 3: Intake Air Housing Bolt
    GC0155101Courtesy of CHRYSLER GROUP, LLC
  6. Install the housing bolt (1). Tighten bolt (1) 8 N.m (71 in. lbs.).
  7. Connect both of the negative battery cables.
