Air Cleaner: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The 6.7L does not incorporate a Filter Minder® indicator. When the air filter requires service, a message will be displayed on the Electronic Vehicle Information Center (EVIC). The customer will be required to replace it with-in 250 miles (402 KM).

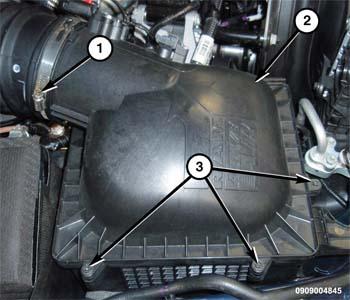

Fig 1: Identifying Clamp, Air Cleaner Cover & Screws

Courtesy of CHRYSLER GROUP, LLC

Loosen clamp (1) and disconnect air tube.
Loosen screws (3) from top of air cleaner cover (2) and tilt the cover up for removal.

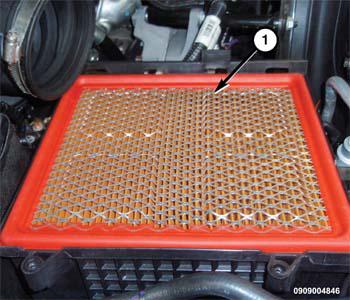

Fig 2: Air Cleaner Filter
Courtesy of CHRYSLER GROUP, LLC
Remove air cleaner filter (1) from air cleaner body.
