Remove the battery from the battery tray. Refer to BATTERY, REMOVAL .

Fig 1: B+ Cable Bolt
Courtesy of CHRYSLER GROUP, LLC

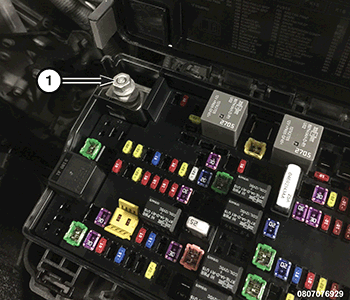

Open the Power Distribution cover (PDC) and remove the B+ cable bolt (1).

Fig 2: Wire Hold Downs
Courtesy of CHRYSLER GROUP, LLC

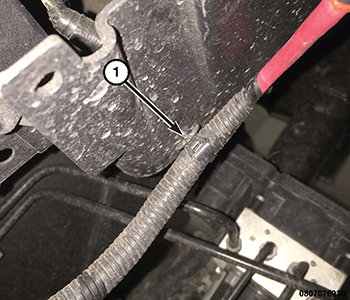

Unclip all wiring harness wire hold downs (1) on the battery tray. There are 6 hold downs.

Fig 3: Clip
Courtesy of CHRYSLER GROUP, LLC

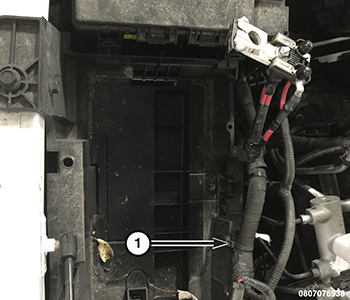

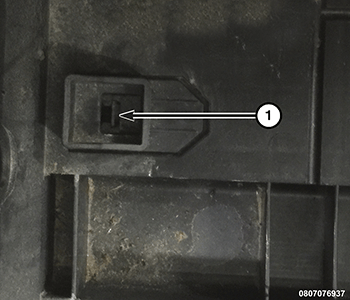

Remove the clips (1) at the PDC base.

Fig 4: Harness Retainer
Courtesy of CHRYSLER GROUP, LLC

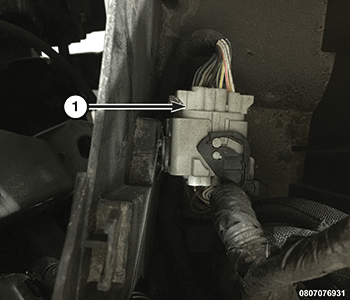

Disconnect the wire harness retainers (1) from the battery tray assembly including those in the PDC portion of the tray.

Fig 5: Radiator Cover Clips
Courtesy of CHRYSLER GROUP, LLC

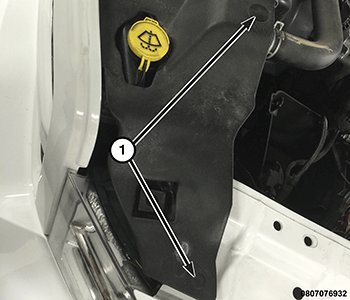

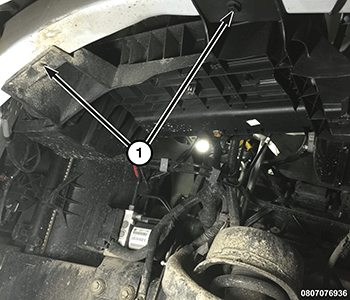

Partially remove the radiator cover by removing two clips (1).

Fig 6: Support Bracket & Bolt
Courtesy of CHRYSLER GROUP, LLC

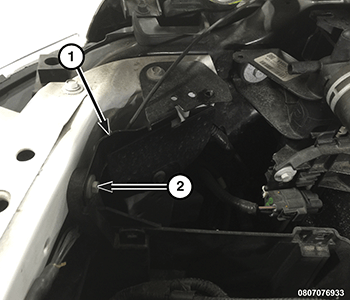

Remove the three bolts (2) and remove the support bracket (1) behind the headlight.

Fig 7: Battery Tray Bolts
Courtesy of CHRYSLER GROUP, LLC

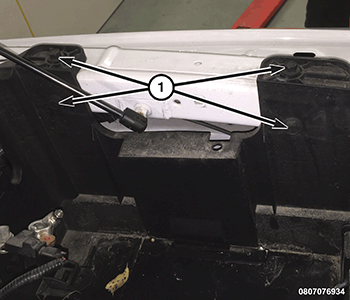

Remove four bolts (1) securing the battery tray to the fender wall.
Remove the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

Fig 8: Lower Battery Tray Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the two lower battery tray bolts (1).

Fig 9: Battery Tray Spacer
Courtesy of CHRYSLER GROUP, LLC
When removing the battery tray for replacement, transfer the battery tray spacer (1) (if equipped) to the new battery tray.
