Grille, Active Shutter: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the Active Grille Shutter (AGS) assembly or AGS actuator with a service part it will be necessary to perform a counter reset with a scan tool. Follow the scan tool prompts as located under PCM/Misc. Functions/Active Grill Shutter Replace.

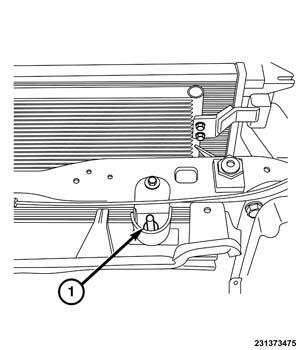

Fig 1: Hood Switch

Courtesy of CHRYSLER GROUP, LLC

Remove the grille. Refer to GRILLE, REMOVAL .
Separate the hood switch (1) and position aside.

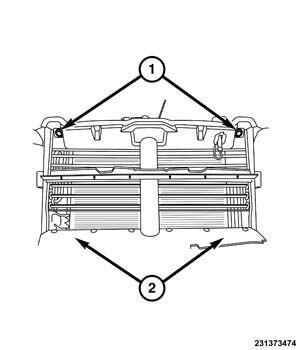

Fig 2: Upper And Lower Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the upper (1) and lower bolts (2) and tip the top of the AGS assembly down towards the front of the vehicle.

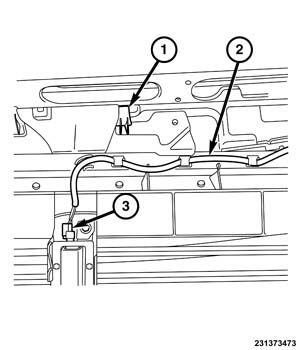

Fig 3: Lower Hooks, Wire Harness And Electrical Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the electrical connector (3) and position aside the wire harness (2).
Lift the AGS assembly off the lower hooks (1) and remove the assembly.
