Ram Box Lid

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

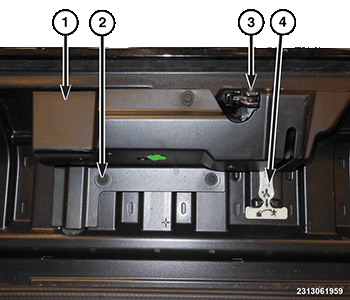

Fig 1: Latch Cover, Screws, Bolts & Handle
GC0169746Courtesy of CHRYSLER GROUP, LLC
  1. Remove the two screws (3) from the latch cover (1).
  2. Remove the three bolts (2) from the latch cover (1).
  3. Route the escape handle (4) through the slot in the latch cover.

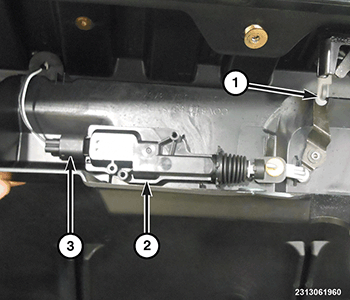

    Fig 2: Latch Actuator, Linkage & Connector
    GC0169742Courtesy of CHRYSLER GROUP, LLC
  4. If equipped with a lock actuator (2)-
    1. Disconnect and isolate the battery negative cable.
    2. Position the latch cover slightly away the latch.
    3. Disconnect the actuator wiring connector (3) and linkage (1).

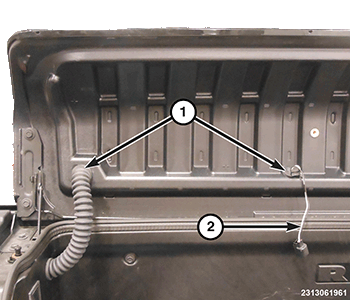

      Fig 3: Wiring & Grommets
      GC0169707Courtesy of CHRYSLER GROUP, LLC
    4. Remove the two wiring grommets (1) from the lid.
    5. Carefully, pull the wiring (2) out of the lid.

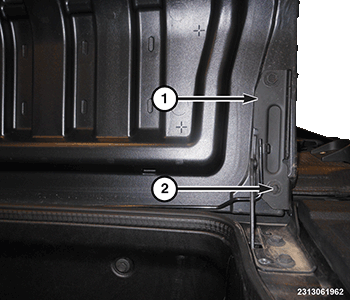

    Fig 4: Hinge & Bolts
    GC0169743Courtesy of CHRYSLER GROUP, LLC
  5. Remove the two hinge bolts (2) from the hinge (1) and repeat on the opposite side.
  6. Remove the lid from the vehicle.
