Ram Box Applique

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

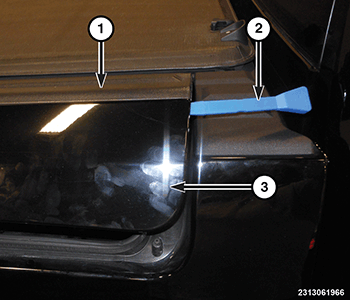

Fig 1: Removing Applique (1 Of 2)
GC0169734Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lock cylinder.
  2. Carefully, insert a plastic trim stick (2) between the lid (1) and the applique (3) at the side upper corner.
  3. Gently pry while inserting further to release the retaining clip.

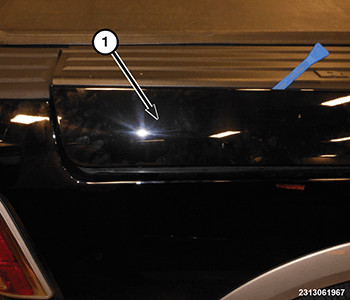

    Fig 2: Removing Applique (2 Of 2)
    GC0169725Courtesy of CHRYSLER GROUP, LLC
  4. Continue working along the top edge of the applique (1) releasing the retaining clips along the way.
  5. Remove the applique (1) from the lid.
