Installation-Diesel Engine

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the reservoir (2) to the bracket and install the reservoir mounting bolt (1). Tighten the reservoir mounting bolt to the proper specifications. Refer to PUMP, SPECIFICATIONS .

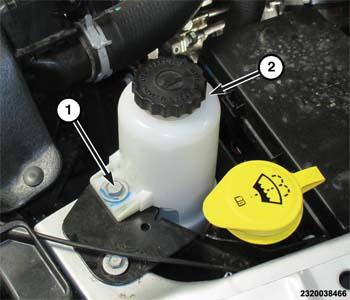

    Fig 1: Reservoir & Bolt
    GC0161608Courtesy of CHRYSLER GROUP, LLC
  2. Connect the return hose.
  3. Install the splash shield.
  4. Fill the reservoir with power steering fluid. Refer to PUMP, STANDARD PROCEDURE .
