Bracket - 2500, 3500

WARNING: This page is about a different car, the 2015 RAM 3500 HD and 2015 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

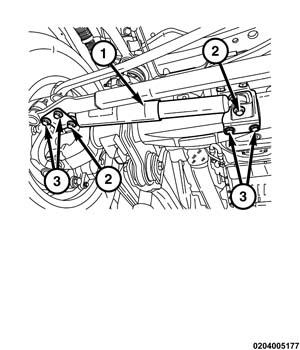

Fig 1: Damper, Steering, Link And Coil
GC0161542Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the steering damper mounting bolts (2) at the linkage brackets and remove the steering damper (1).
  3. Remove the four mounting bracket bolts (3) and remove the brackets.
