Curb Height Measurement

The wheel alignment is to be checked and all alignment adjustments made with the vehicle at its required curb height specification.

Vehicle height is to be checked with the vehicle on a flat, level surface, preferably a vehicle alignment rack. The tires are to be inflated to the recommended pressure. All tires are to be the same size as standard equipment. Vehicle height is checked with the fuel tank full of fuel, and no passenger or luggage compartment load.

Inspect the vehicle for bent or weak suspension components. Compare the parts tag on the suspect coil spring(s) to the parts book and the vehicle sales code, checking for a match. Once removed from the vehicle, compare the coil spring height to a correct new or known good coil spring. The heights should vary if the suspect spring is weak.

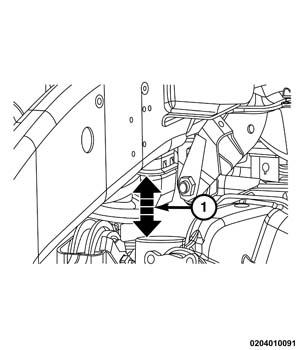

Fig 1: Jounce Bumper Cup/Axle Striker Plate (4x4)

Courtesy of CHRYSLER GROUP, LLC

1. Front 4x2 and 4x4  On each side of the vehicle, measure the distance from the rear side of the jounce bumper cup/axle striker plate (1).

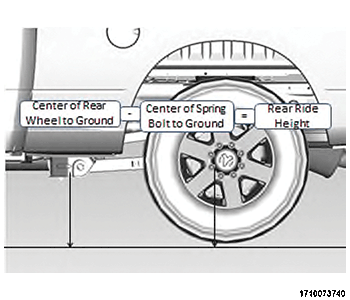

   Fig 2: Curb Height Measurement

   Courtesy of CHRYSLER GROUP, LLC
2. Rear ALL  Measure from the center of the wheel to the ground, measure from the center of the lower control arm bolt to the ground. Subtract the second reading from the first reading and that will be the ride height.
3. Compare the measurements to the specifications listed in the following Curb height Specifications chart.
