Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Turn the ignition off.
2. If possible, allow the vehicle to sit with the ignition off for more than 480 minutes in an environment where the temperature is consistent and above -7° C (19.4° F).
3. Test drive the vehicle. The vehicle must exceed 48 km/h (30 mph) during the test drive. Do not cycle the ignition off when the test drive is completed.
4. With a scan tool, select View the DTCs.
  NOTE:
  All ECT, Intake Air, and Ambient Air Temperature Sensor codes must be diagnosed and repaired before continuing.

  NOTE:
  In cold weather, this DTC could be set by a high powered block heater and no repair would be required.

  Is the DTC Active or Pending at this time?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
TEMPERATURE SENSOR READINGS
1. Turn the ignition off.
2. Allow the vehicle to sit with the ignition off in an environment where the temperature is consistent and above -7° C (19.4° F) until the engine coolant temperature is equal to ambient temperature.
3. Turn the ignition on.
4. With a scan tool, compare the AAT, ECT, and IAT sensor values.
  Are all of the temperature sensor values within a range of 10° C (18° F)?

  Yes
  - Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT CONDITION .
  No
  - Go To 3.
TEMPERATURE SENSOR
1. Ignition on, engine not running.
2. Disconnect the suspected faulty sensor.
3. Connect a jumper wire between the Sensor Signal circuit and the Sensor ground circuit.
4. With the scan tool, read the voltage of the suspected Sensor.
  Did the voltage reading start at 4.8 to 5.0 volts and decrease to 0 volts when the jumper wire was installed?

  Yes
  - Verify that there is good pin to terminal contact in the related Sensor and Powertrain Control Module connectors. Replace the Sensor if no problems were found in the connectors.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 4.
    NOTE:
    Remove the jumper wire before continuing.
EXCESSIVE RESISTANCE IN THE TEMPERATURE SENSOR SIGNAL CIRCUIT

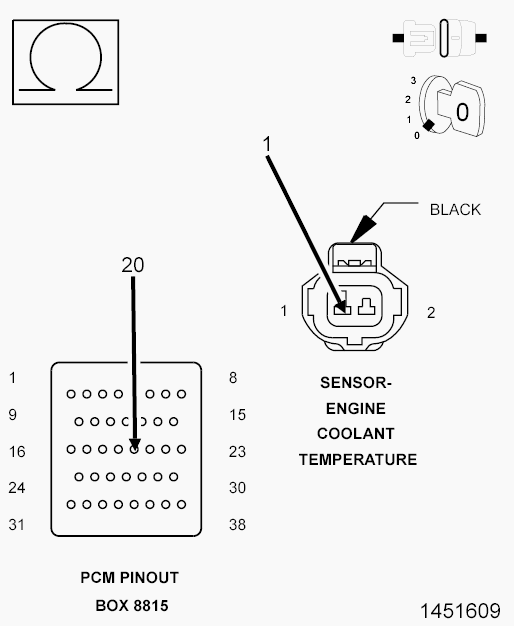

Fig 1: Measuring Resistance Of ECT Sensor Signal Circuit From Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C1 and C2 PCM harness connectors.

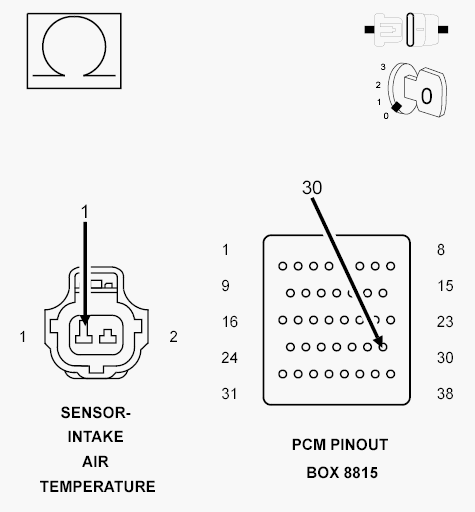

  Fig 2: Measuring Air Intake Temperature Sensor Signal Circuit Resistance
  Courtesy of CHRYSLER LLC
3. Disconnect the C4 TIPM harness connector.
  CAUTION:
  Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.

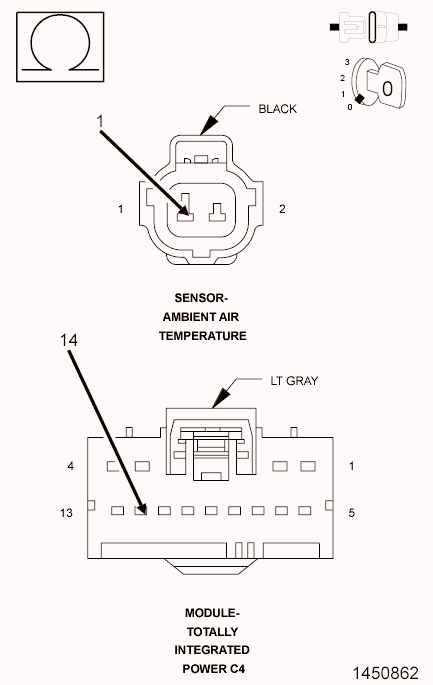

  Fig 3: Measuring Ambient Air Temperature Sensor Signal Circuit Resistance
  Courtesy of CHRYSLER LLC
4. Measure the resistance of the Sensor Signal circuit from the Sensor harness connector to the appropriate terminal of the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) or the C4 TIPM harness connector.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the excessive resistance in the Temperature Sensor Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 5.
EXCESSIVE RESISTANCE IN THE SENSOR GROUND CIRCUIT

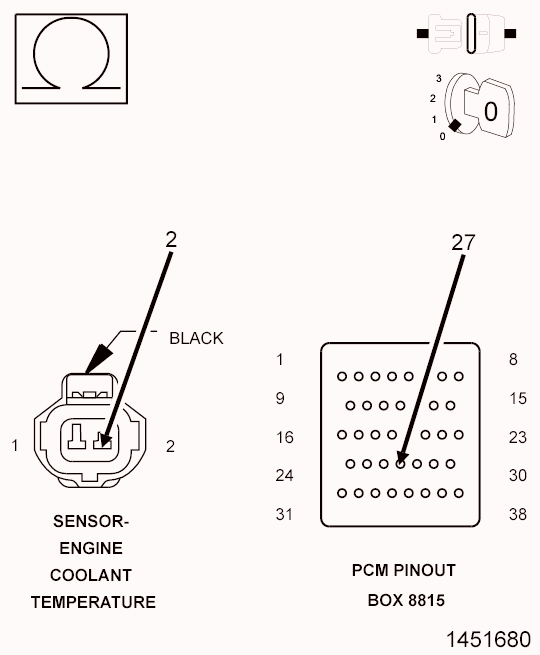

Fig 4: Measuring Resistance Of ECT Sensor Ground Circuit From Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
Courtesy of CHRYSLER LLC

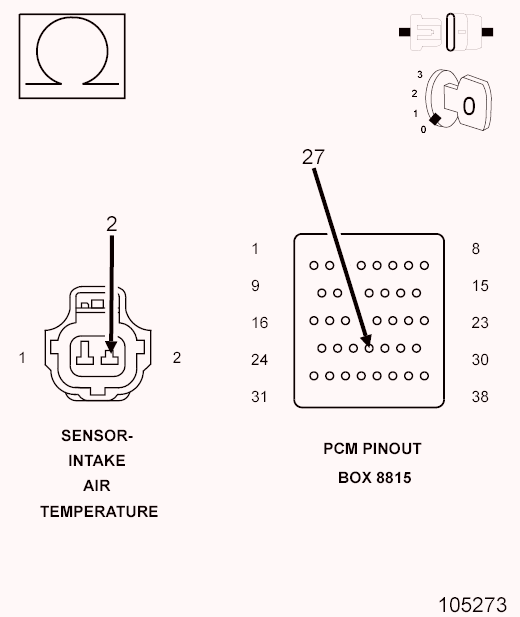

Fig 5: Measuring Resistance Of Sensor Ground Circuit From IAT Sensor Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
Courtesy of CHRYSLER LLC
1. Measure the resistance of the Sensor ground circuit from the Sensor harness connector to the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) or the C4 TIPM harness connector.

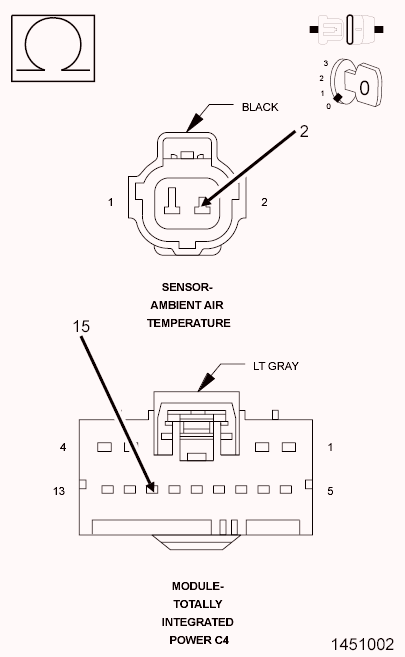

  Fig 6: Measuring Resistance Of Sensor Ground Circuit From AAT Sensor Harness Connector To TIPM Harness Connector
  Courtesy of CHRYSLER LLC

  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the excessive resistance in the Sensor ground circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 6.
SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

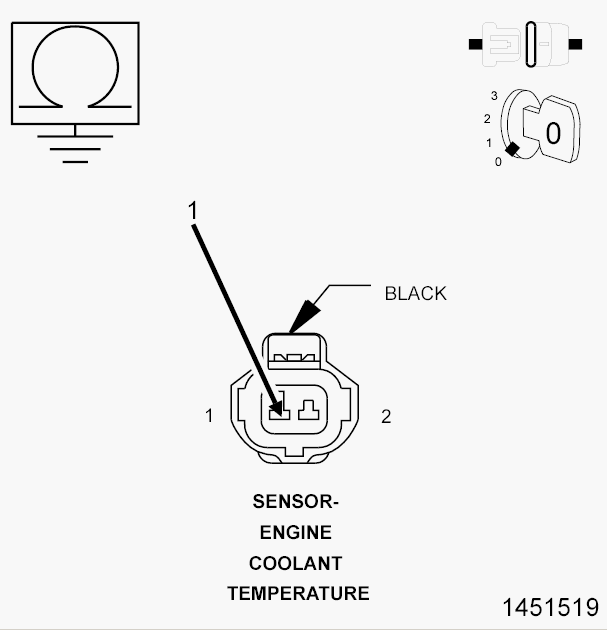

Fig 7: Measuring Resistance Between Ground And ECT Sensor Signal Circuit In Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the Sensor Signal circuit at the Sensor harness connector.

  Fig 8: Measuring Resistance Between Ground And IAT Sensor Signal Circuit AT IAT Sensor Harness Connector
  Courtesy of CHRYSLER LLC

  Fig 9: Measuring Resistance Between Ground And AAT Sensor Signal Circuit In AAT Sensor Harness Connector
  Courtesy of CHRYSLER LLC

  Is the resistance below 100 Ohms?

  Yes
  - Repair the short to ground in the Sensor Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 7.
SENSOR SIGNAL CIRCUIT SHORTED TO THE SENSOR GROUND CIRCUIT

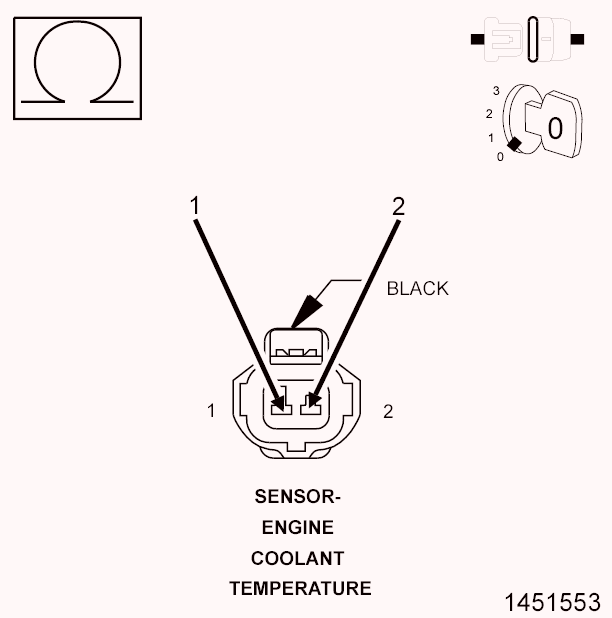

Fig 10: Measuring Resistance Between ECT Sensor Signal Circuit And Ground Circuit In Sensor Harness Connector
Courtesy of CHRYSLER LLC

Fig 11: Measuring Resistance Between IAT Sensor Signal Circuit And Sensor Ground Circuit AT IAT Sensor Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the Sensor Signal circuit at the Sensor harness connector.

  Fig 12: Measuring Resistance Between Sensor Return Circuit And Sensor Signal Circuit In AAT Sensor Harness Connector
  Courtesy of CHRYSLER LLC

  Is the resistance below 100 Ohms?

  Yes
  - Repair the short between the Sensor ground circuit and the Sensor Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 8.
SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

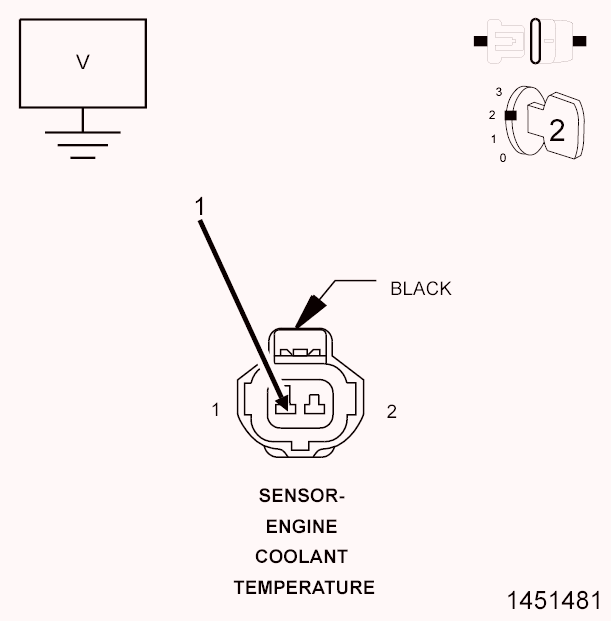

Fig 13: Measuring Voltage On ECT Sensor Signal Circuit Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Measure the voltage on the Sensor Signal circuit at the Sensor harness connector.

  Fig 14: Measuring Voltage On AAT Signal Circuit In AAT Sensor Harness Connector
  Courtesy of CHRYSLER LLC

  Fig 15: Measuring Voltage Of IAT Sensor Signal Circuit AT IAT Sensor Harness Connector
  Courtesy of CHRYSLER LLC

  Is there any voltage present?

  Yes
  - Repair the short to voltage in the Sensor Signal circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 9.
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the related Sensor and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched, or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the related Sensor and Powertrain Control Module connectors.
4. Perform any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
