Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

ACTIVE DTC
1. Start the engine.
2. Allow the engine to reach normal operating temperature.
3. Turn the A/C on.
4. With the scan tool, select View DTCs.
  Is the DTC Active at this time?

  Yes
  - Go To 2.
  No
  - Perform the INTERMITTENT CONDITION Diagnostic Procedure. Refer to INTERMITTENT CONDITION .
(C13) A/C CLUTCH CONTROL CIRCUIT SHORTED TO VOLTAGE

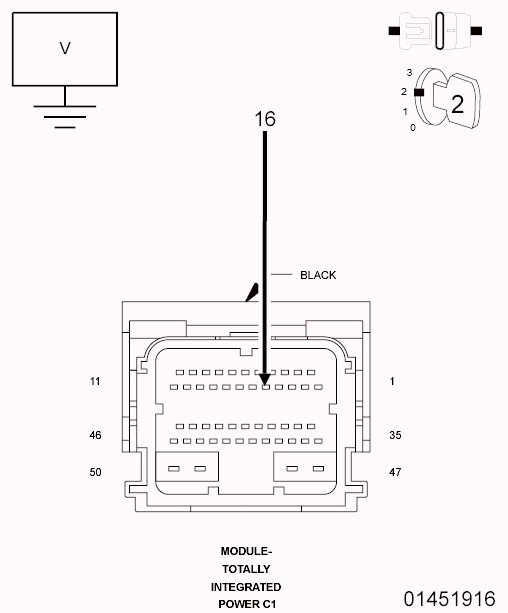

Fig 1: Measuring Voltage On (C13) A/C Clutch Control Circuit AT C1 TIPM Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the C3 PCM harness connector.
3. Disconnect the C1 TIPM harness connector.
4. Ignition on, engine not running.
5. Measure the voltage on the (C13) A/C Clutch Control circuit at the C1 TIPM harness connector.
  Is there any voltage present?

  Yes
  - Repair the short to voltage in the (C13) A/C Clutch Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 3.
(C13) A/C CLUTCH CONTROL CIRCUIT OPEN

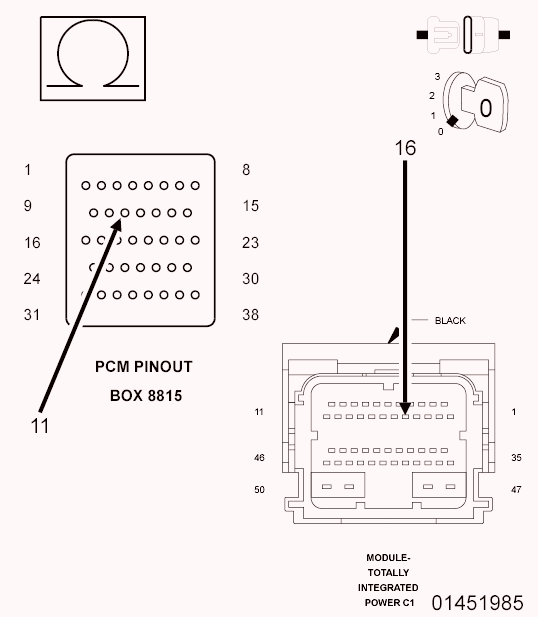

Fig 2: Measuring Resistance Of (C13) A/C Clutch Control Circuit From C1 TIPM Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
  CAUTION:
  Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.
2. Measure the resistance of the (C13) A/C Clutch Control circuit from the C1 TIPM harness connector to the appropriate terminal of PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position).
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 4.
  No
  - Repair the open in the (C13) A/C Clutch Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
(C13) A/C CLUTCH CONTROL CIRCUIT SHORTED TO GROUND

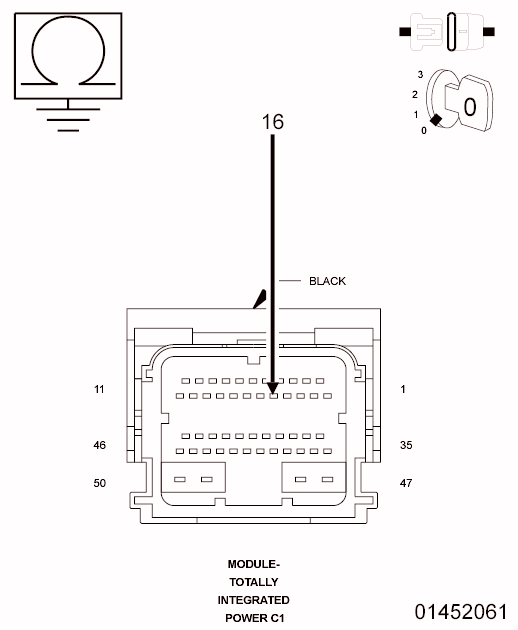

Fig 3: Measuring Resistance Between Ground And (C13) A/C Clutch Control Circuit AT C1 TIPM Harness Connector
Courtesy of CHRYSLER LLC
1. Measure the resistance between ground and the (C13) A/C Clutch Control circuit at the C1 TIPM harness connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the short to ground in the (C13) A/C Clutch Control circuit.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Go To 5.
A/C CLUTCH CONTROL OPERATION FROM THE PCM

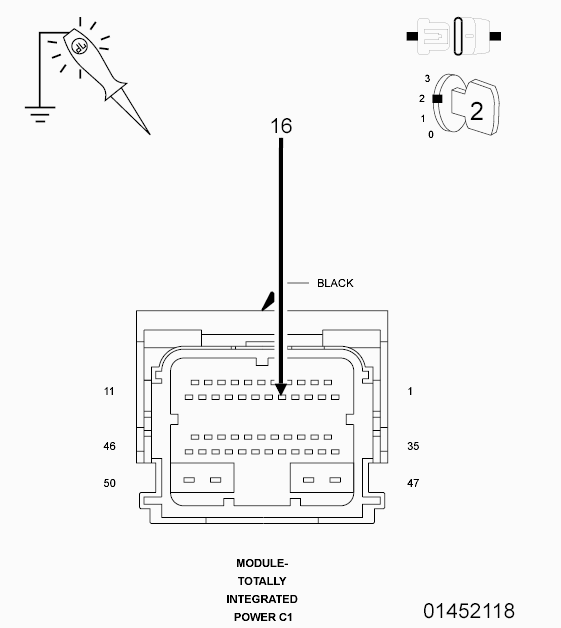

Fig 4: Using 12-volt Test Light Connected To Ground To Probe (C13) A/C Clutch Control Circuit In TIPM C1 Harness Connector
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Connect the C3 PCM harness connector.
3. Ignition on, engine not running.
4. Using the scan tool in the PCM, actuate the A/C Clutch.
5. With a 12-volt test light connected to ground, probe the (C13) A/C Clutch Control circuit in the TIPM C1 harness connector.
  Does the test light illuminate brightly and flash on an off?

  Yes
  - If OK, replace the TIPM in accordance with the Service Information.
  No
  - Go To 6.
POWERTRAIN CONTROL MODULE (PCM)
1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the related A/C Clutch and the Powertrain Control Module (PCM).
2. Look for any chafed, pierced, pinched or partially broken wires.
3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the A/C Clutch and Control Module connectors.
4. Refer to any Technical Service Bulletins that may apply.
  Were there any problems found?

  Yes
  - Repair as necessary.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  No
  - Replace and program the Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
