Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. ACTIVE DTC
    NOTE:

    Make sure the Stop Lamp Switch is properly adjusted before continuing.

    NOTE:

    Make sure the Stop Lamp Switch is properly wired, such as (B15) Brake Switch No. 1 and (B16) Brake Switch No. 2 circuit are not switched at the harness connector.

    1. Ignition on, engine not running.
    2. With the scan tool, select View DTCs.

      Is the DTC Active at this time?

      Yes

      • Go To  2.

      No

  2. (B15) BRAKE SWITCH NO. 1 SIGNAL SHORTED TO GROUND

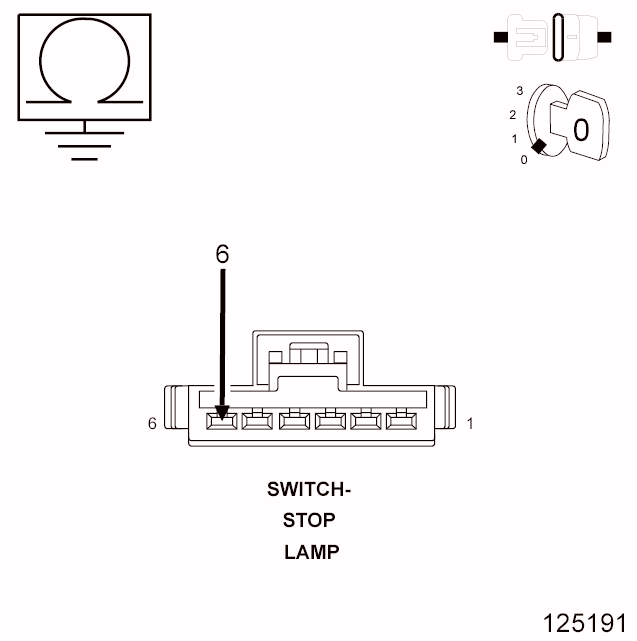

    Fig 1: Measuring Resistance Between Ground And (B15) Brake Switch No. 1 Signal Circuit In Stop Lamp Switch Harness Connector
    GC0090873Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the Stop Lamp Switch harness connector.
    3. Disconnect the C3 PCM harness connector.
    4. Measure the resistance between ground and the (B15) Brake Switch No. 1 Signal circuit in the Stop Lamp Switch harness connector.

      Is the resistance below 100 Ohms?

      Yes

      • Repair the short to ground in the (B15) Brake Switch No. 1 Signal circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  3.
  3. (B16) BRAKE SWITCH NO. 2 SIGNAL CIRCUIT OPEN

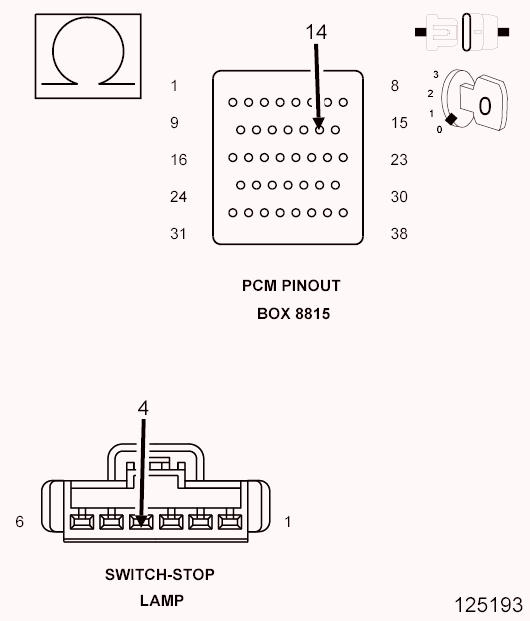

    Fig 2: Measuring Resistance Of Brake Switch No. 2 Signal Circuit From Stop Lamp Switch Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
    GC0090874Courtesy of CHRYSLER LLC
    CAUTION:

    Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.

    1. Measure the resistance of the (B16) Brake Switch No. 2 Signal circuit from the Stop Lamp Switch harness connector to the appropriate terminal of PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position).

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  4.

      No

      • Repair the open in the (B16) Brake Switch No. 2 Signal circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  4. (B16) BRAKE SWITCH NO. 2 SIGNAL CIRCUIT SHORTED TO GROUND

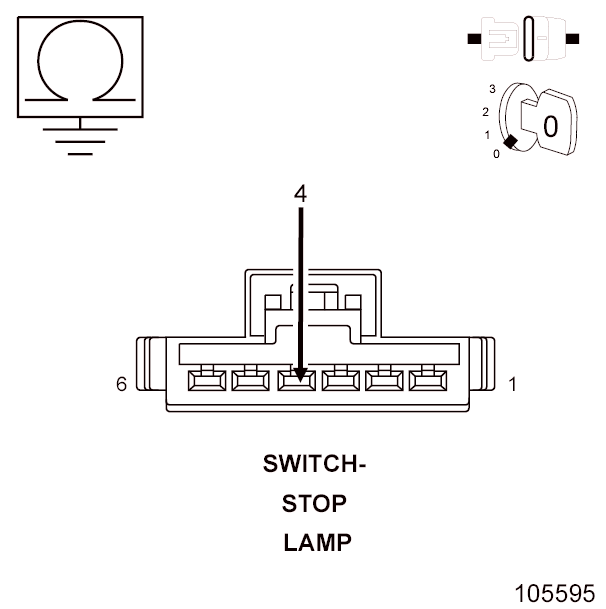

    Fig 3: Measuring Resistance Between Ground And (B16) Brake Switch No. 2 Signal Circuit In Stop Lamp Switch Harness Connector
    GC0090875Courtesy of CHRYSLER LLC
    1. Measure the resistance between ground and the (B16) Brake Switch No. 2 Signal circuit in the Stop Lamp Switch harness connector.

      Is the resistance below 100 Ohms?

      Yes

      • Repair the short to ground in the (B16) Brake Switch No. 2 Signal circuit.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  5.
  5. (G210) GROUND CIRCUIT OPEN

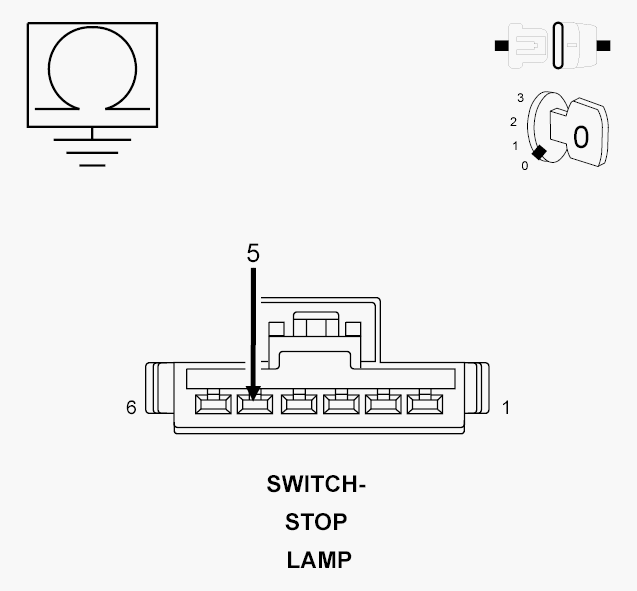

    Fig 4: Measuring Resistance Between Ground And Ground Circuit In Stop Lamp Switch Harness Connector
    GC0090876Courtesy of CHRYSLER LLC
    1. Measure the resistance between ground and the (G210) Ground circuit in the Stop Lamp Switch harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  6.

      No

  6. STOP LAMP SWITCH
    1. Measure the resistance between the (G210) Ground circuit terminal and the (B15) Brake Switch No. 1 Signal terminal in the Stop Lamp Switch.
    2. Apply and release the brake pedal while monitoring the ohmmeter.
    3. Next, measure the resistance between the (A108) Fused Ignition Switch circuit terminal and the (B16) Brake Switch No. 2 Signal circuit terminal in the Stop Lamp Switch.
    4. Apply and release the brake pedal while monitoring the ohmmeter.

      Does the resistance change from below 5.0 Ohms to an open circuit for one or both of the measurements taken?

      Yes

      • Go To  7.

      No

      • Verify that there is good pin to terminal contact in the Switch and Control Module connectors. Replace the Stop Lamp Switch if no problems were found in the connectors.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  7. POWERTRAIN CONTROL MODULE (PCM)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Stop Lamp Switch and the Powertrain Control Module (PCM).
    2. Look for any chafed, pierced, pinched or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Switch and Control Module connectors.
    4. Perform any Technical Service Bulletins that may apply.

      Were there any problems found?

      Yes

      No

      • Replace and program the Powertrain Control Module in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
