P2D2E-00 Cold Start Intake Manifold Runner Performance Bank 2

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

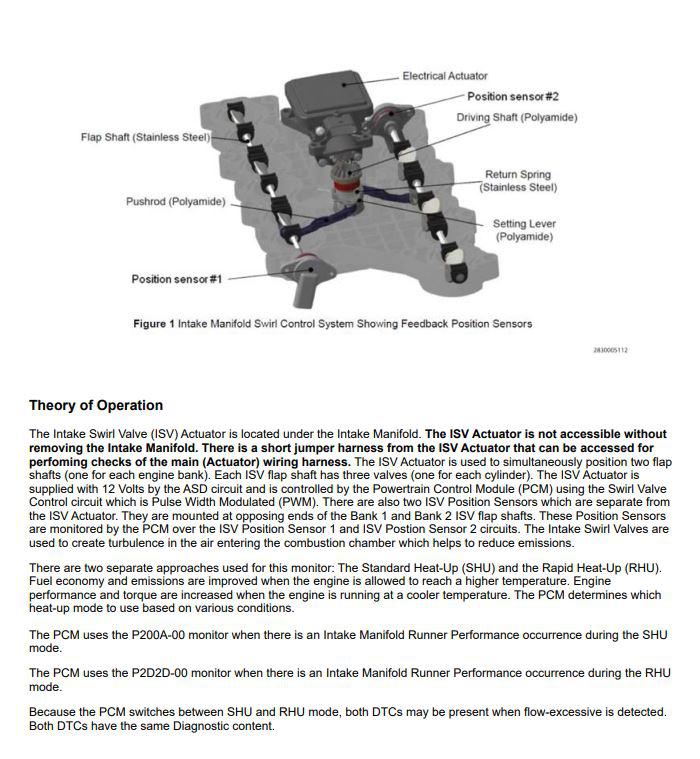

G00636651Courtesy of CHRYSLER GROUP, LLC

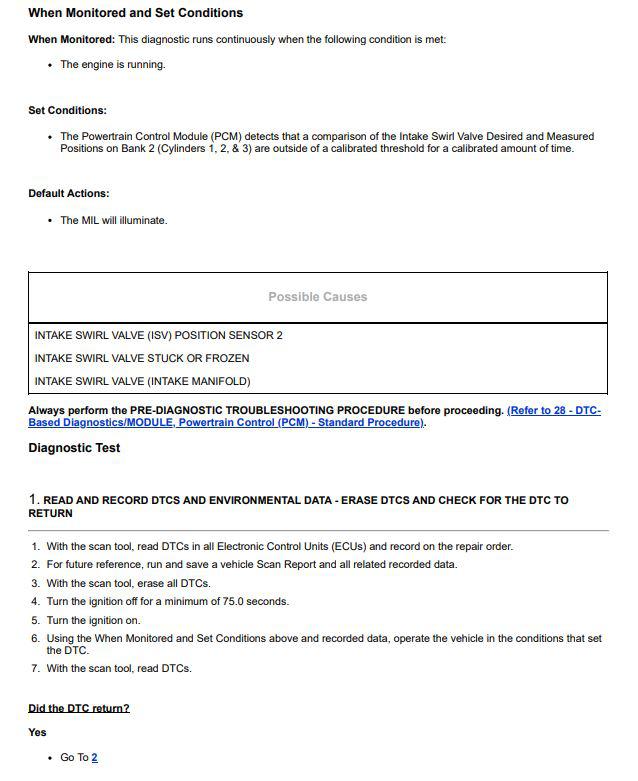

G00636652Courtesy of CHRYSLER GROUP, LLC

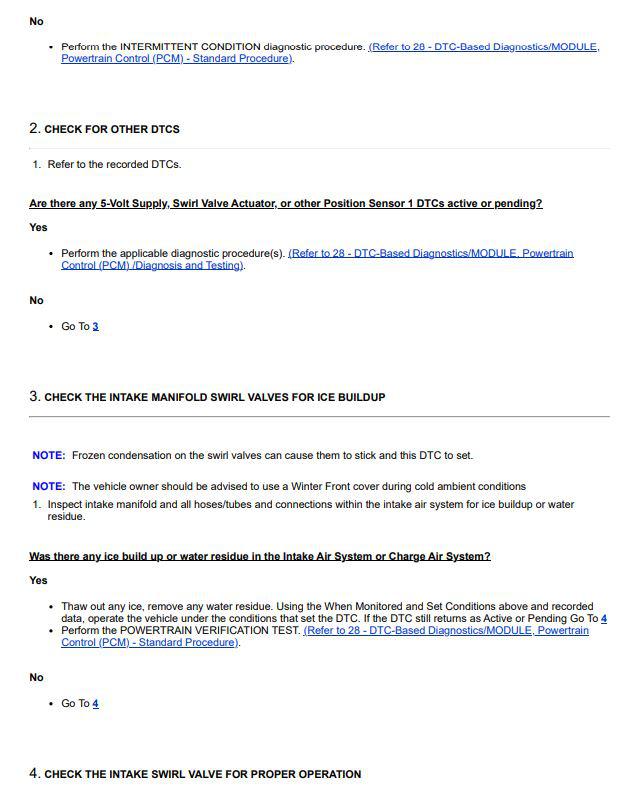

G00636653Courtesy of CHRYSLER GROUP, LLC

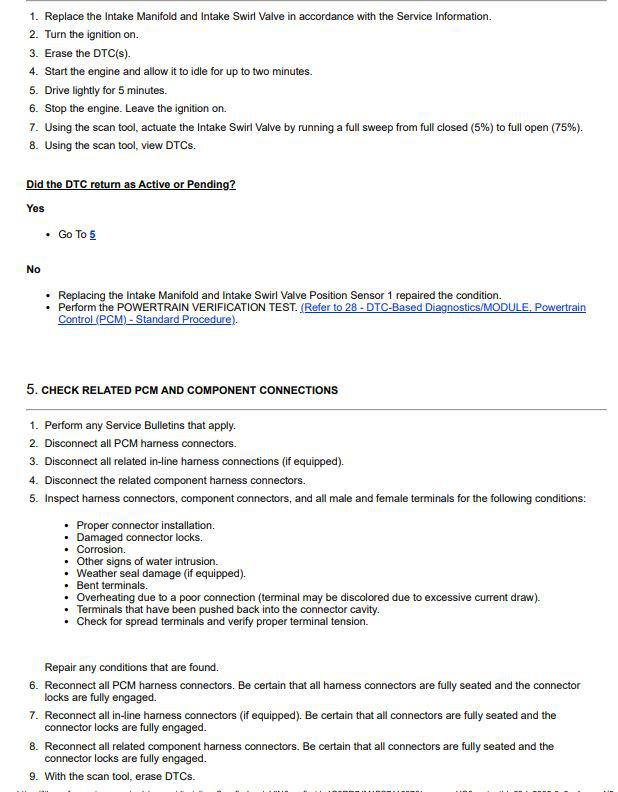

G00636654Courtesy of CHRYSLER GROUP, LLC

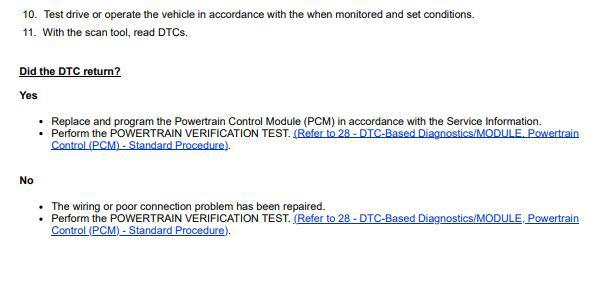

G00636655Courtesy of CHRYSLER GROUP, LLC

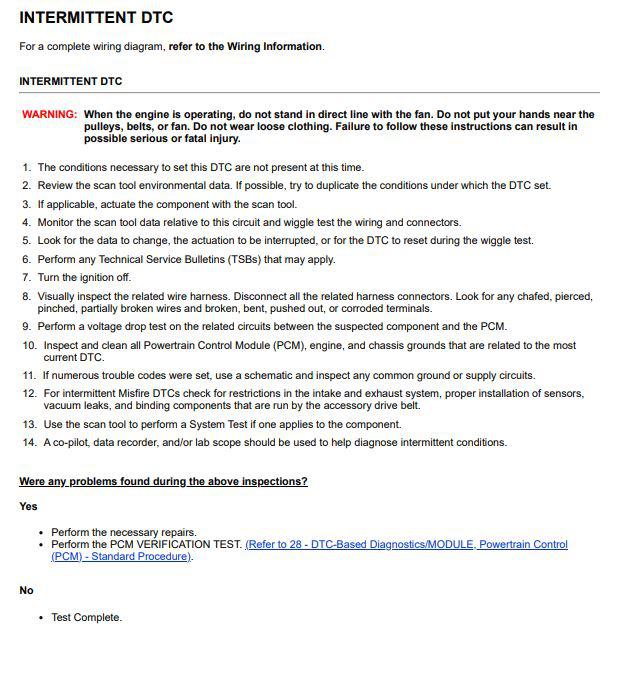

G00636656Courtesy of CHRYSLER GROUP, LLC

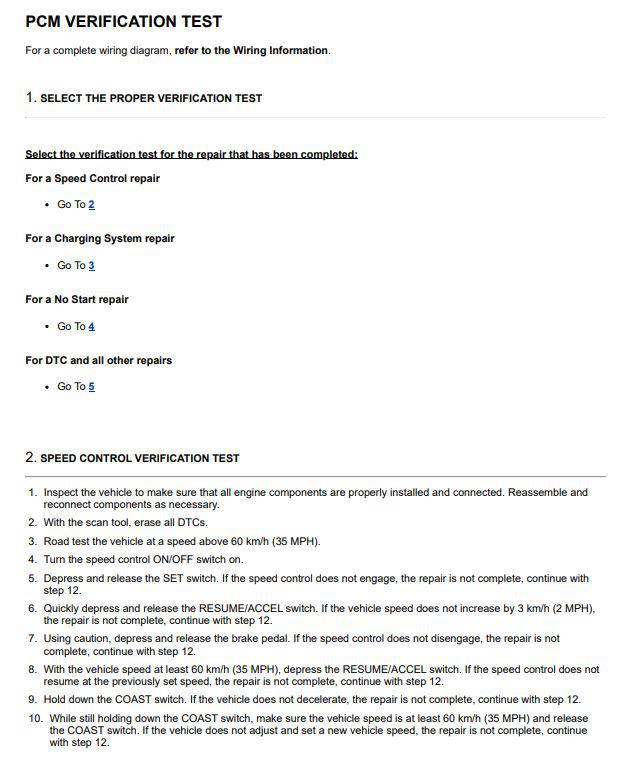

G00636657Courtesy of CHRYSLER GROUP, LLC

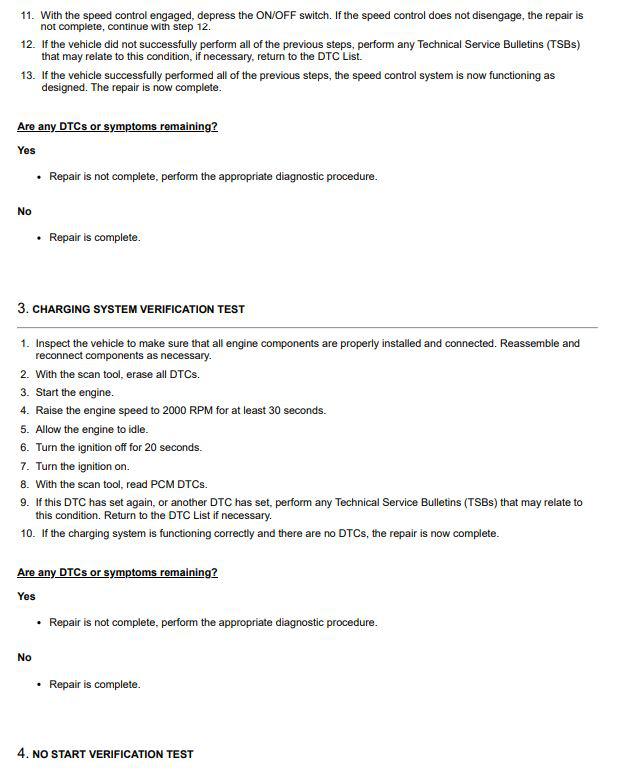

G00636658Courtesy of CHRYSLER GROUP, LLC

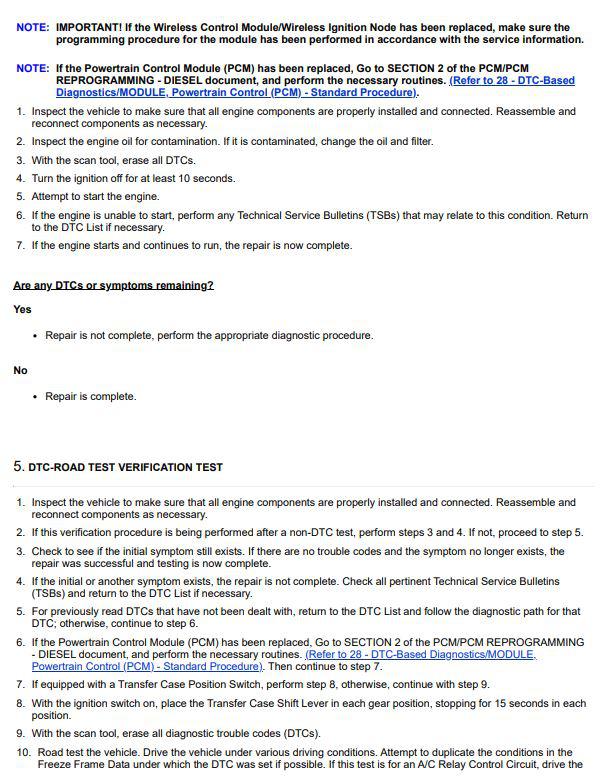

G00636659Courtesy of CHRYSLER GROUP, LLC

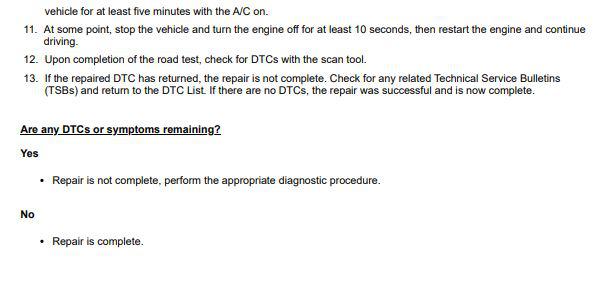

G00636660Courtesy of CHRYSLER GROUP, LLC
