Tube, Exhaust Gas RECIRCULATION (EGR): Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

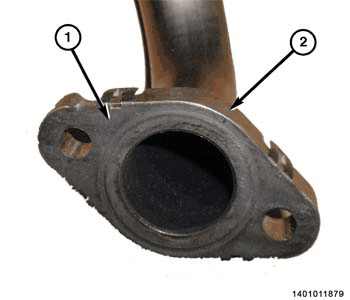

Fig 1: EGR Tube Adapter Pipe Gasket

Courtesy of CHRYSLER GROUP, LLC

Clean all gasket sealing areas.
If removed, install a NEW EGR tube adapter pipe gasket (1).

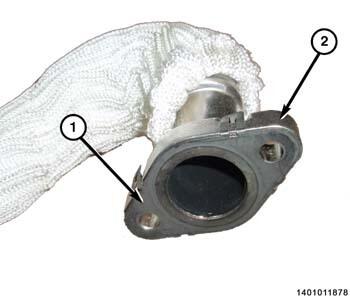

Fig 2: EGR Tube & Gasket (1 Of 2)
Courtesy of CHRYSLER GROUP, LLC
Install a NEW Lower EGR tube gasket (1).

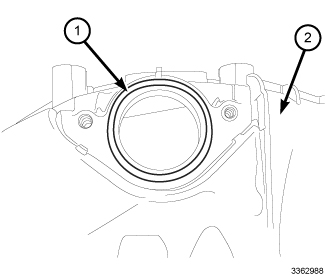

Fig 3: EGR Tube & Gasket (2 Of 2)
Courtesy of CHRYSLER GROUP, LLC
Install a NEW upper EGR tube (2) gasket (1).

Fig 4: EGR Tube & Bolts (Intake Side)
Courtesy of CHRYSLER GROUP, LLC
Install the EGR tube (1). Tighten the bolts (2) to 15 N.m (11 ft. lbs.).

Fig 5: EGR Tube & Bolts (Valve Side)
Courtesy of CHRYSLER GROUP, LLC
Install the EGR tube bolts (1) and tighten bolts to 15 N.m (11 ft. lbs.).

Fig 6: Fuel Injector Silencer, Intake Manifold Insulator & Breather Hose
Courtesy of CHRYSLER GROUP, LLC
Install the fuel injector silencer (1).
Install the intake manifold silencer (2)

Fig 7: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
