Solenoid, Vacuum, Exhaust Gas RECIRCULATION (EGR) Bypass: Description: Description

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

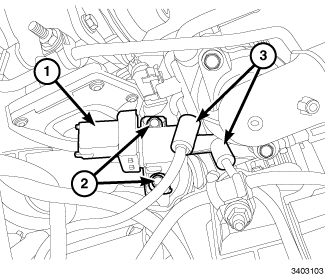

Fig 1: EGR Cooler Vacuum Solenoid, Vacuum Lines & Bolts

Courtesy of CHRYSLER GROUP, LLC

The EGR cooler vacuum solenoid (1) is located on the intake manifold next to the thermostat housing.
