Assembly, Diesel Exhaust Fluid Pump: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable.
Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Drain the Diesel Exhaust Fluid (DEF) tank. Refer to DIESEL EXHAUST FLUID EMISSIONS, STANDARD PROCEDURE .

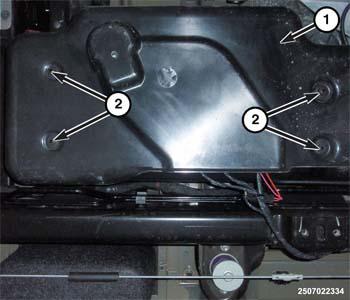

Fig 1: DEF Tank Shield & Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the nuts (2) and the DEF tank shield (1).

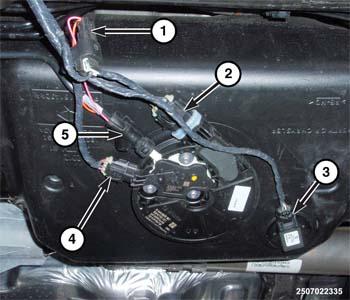

Fig 2: DEF Pump Supply Line, Pump, Supply Line Heater, Quality Sensor & Level Sensor/Heater Wire Harness Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect the DEF pump wire harness connector (4).
Disconnect the DEF pump supply line Norma connector (5). Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .

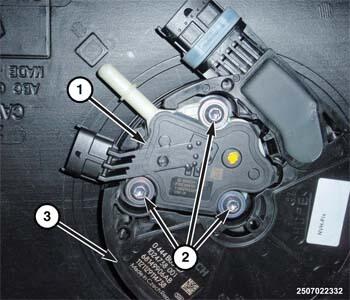

Fig 3: DEF Pump & Screws
Courtesy of CHRYSLER GROUP, LLC
Remove the three DEF pump screws (2).

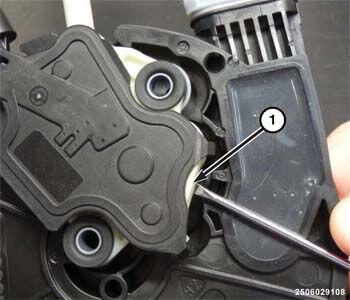

Fig 4: Prying Up On Tab To Remove DEF Pump
Courtesy of CHRYSLER GROUP, LLC
Using a small screw driver, pry up on tab (1) and remove the DEF pump.
