Relay, Winch: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

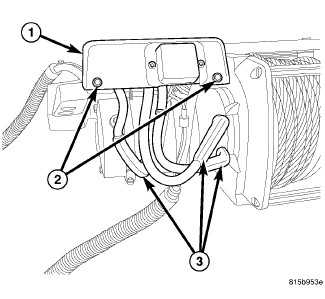

Fig 1: Relay Pack Cover

Courtesy of CHRYSLER LLC

Remove the relay pack (1). Refer to RELAY PACK, Winch, Removal .

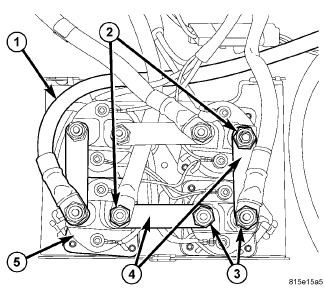

Fig 2: Identifying Nuts, Battery Positive Cable & Bus Straps
Courtesy of CHRYSLER LLC
Remove the nuts (2 AND 3), disconnect the cables and remove the bus straps (4).

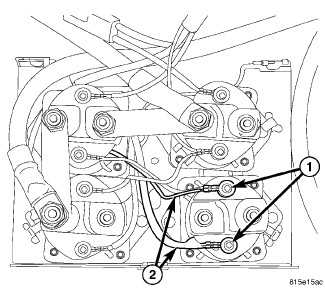

Fig 3: Identifying Nuts And Control Wires
Courtesy of CHRYSLER LLC

NOTE:
Relay #4 shown in illustration, all others similar.
Remove the nuts (1) and disconnect the control wires (2).

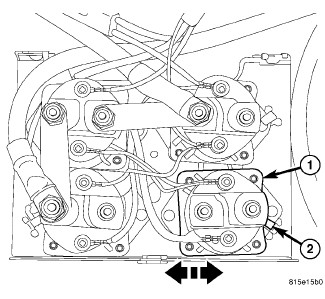

Fig 4: Identifying Relay And Retaining Tab
Courtesy of CHRYSLER LLC
Slide the relay (1) out of the retaining tab (2) and remove.
