Remote Switch Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

To check switch, follow the steps below to check for switch continuity.
Power-Out

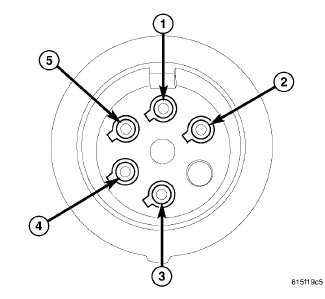

Fig 1: Switch Pin Out
Courtesy of CHRYSLER LLC
1. Move switch to the power-out position.
2. Check for continuity between pins (1) and (4).
3. Check for continuity between pins (2) and (5).
Power-In

Fig 2: Switch Pin Out
Courtesy of CHRYSLER LLC
1. Move switch to the power-in position.
2. Check for continuity between pins (1) and (4).
3. Check for continuity between pins (2) and (3).
If there is no continuity, then the remote switch is bad and needs to be replaced.
