Relay Pack Test
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

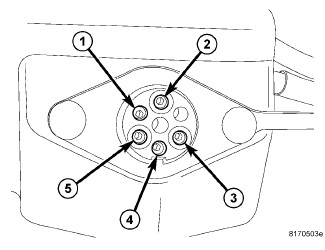

| Measurement between pins | Resistance | Voltage | Results | Correction |
|---|---|---|---|---|
| Ohms | (V) | |||
| 4 to 5 | 2 | - | Yes | Relay pack OK. |
| No | 1. Check for any faulty relay or motor electrical connections and repair if necessary. | |||
| 2. Check for a faulty relay and replace as necessary. Refer to Relay Test . | ||||
| 4 to 2 | 2 | - | Yes | Relay pack OK. |
| No | 1. Check for any faulty relay or motor electrical connections and repair if necessary. | |||
| 2. Check for a faulty relay and replace as necessary. Refer to Relay Test . | ||||
| 1 to 2 | Greater than 100K |
- | Yes | Relay pack OK. |
| No | Check for shorted Thermal Switch. Refer to Thermal Switch Test . | |||
| 1 to 3 | - | 12 | Yes | Relay pack OK. |
| No | 1. Check for any faulty relay or motor electrical connections and repair if necessary. | |||
| 2. Check for faulty LVI. Refer to Low Voltage Interrupt (LVI) Test . |
