Rear Housing Hose

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

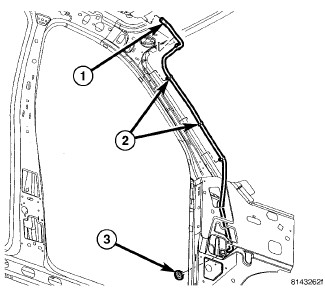

Fig 1: 05 Front Drain Tube
GC0092657Courtesy of CHRYSLER LLC
  1. Remove headliner. Refer to HEADLINER, Removal .
  2. Disconnect the drain hose from the sunroof housing (1).

    * Front tube shown in illustration, rear tube similar.

  3. Drain any liquid from hose connection, if necessary.
  4. Release the push pin fasteners (2) and separate the lower tube from the grommet in the body (3).
