Glass, Sunroof: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

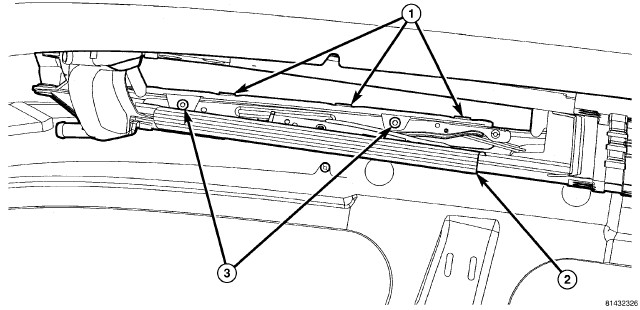

Fig 1: Removing/Installing Mechanism Cover

Courtesy of CHRYSLER LLC

Move the glass panel to the full closed position.
Slide sunshade rearward to the open position.
Separate the mechanism covers (2) from the tabs (1) on the glass panel.

Fig 2: Identifying Glass Fasteners
Courtesy of CHRYSLER LLC
Remove the glass panel screws (3).
Lift off glass panel and remove from vehicle.
