Glass, Sunroof: Adjustments: Adjustments
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Move the sunshade rearward to the open position.

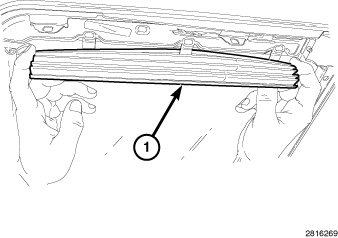

- Separate the mechanism covers (1) from the tabs on the glass panel by pulling the top edge of the cover inboard from both sides.
- Verify the sunroof glass panel is in the fully closed position.
- Loosen the forward attaching screws (2) on each side enough to permit the front of the glass to adjust up or down.
- Adjust the front surface of the sunroof glass panel 0.00 mm to 2 mm (0.00 in. to 0.08 in.) below the top surface of the roof.
- Tighten the front glass panel attaching screws to 5.5 N.m (49 in. lbs.).
- Loosen the rear screws (2) on each side enough to make the rear adjustment.
- Adjust the rear surface of the sunroof glass panel 0.00 mm to 2 mm (0.00 in. to 0.08 in.) above the top surface of the roof.
- Tighten the rear glass panel attaching screws to 5.5 N.m (49 in. lbs.).
- Check for proper fit by inserting a business card between the glass seal and roof. Slide the card around the entire perimeter of the glass. The effort to slide the card should be uniform through the entire perimeter. If the effort is not uniform, repeat the glass panel adjustment.

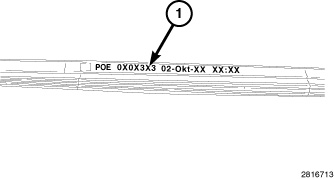

- Locate the top of the mechanism cover by printed text (1).
- Position the mechanism covers (1) over the glass tabs between the locating features and seat fully by pushing the top edges of the cover outboard.
- Verify sunroof operation and alignment.
